Description

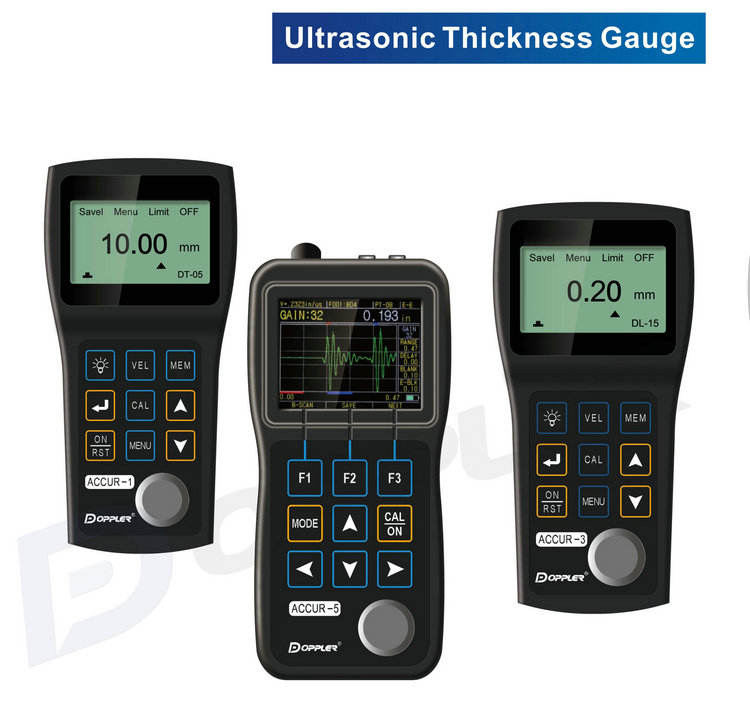

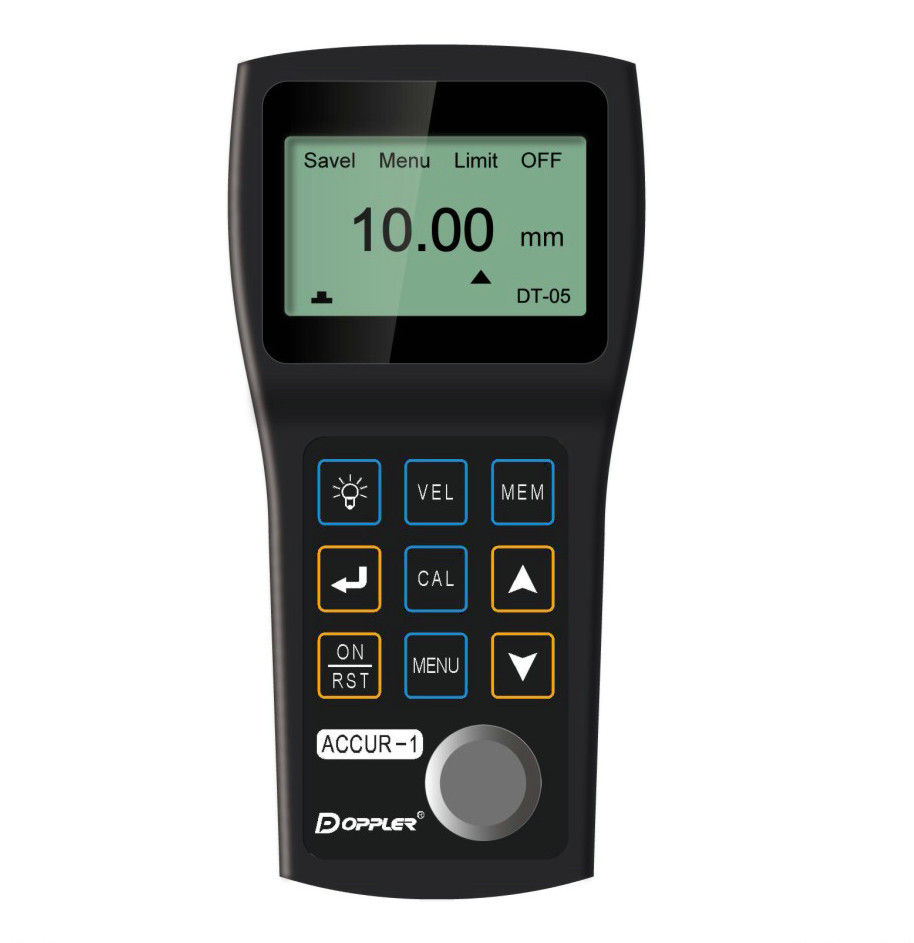

The ACCUR-1 is the entry model of the Doppler thickness gauge family. It measures wall thickness from the accessible side, without cutting the component — for monitoring corrosion loss on tanks, pipelines and steel structures. The family covers the ACCUR-1, ACCUR-3 and ACCUR-5, which differ in display and range of functions.
Key features
- 128 × 64 dot-matrix display — a readable thickness value in field conditions
- 0.01 / 0.1 mm measuring resolution — switched to suit the task
- Reading logger — a series of readings saved for the report
- One-handed operation — for work on a ladder and in confined spaces
Specifications
| Operating principle | standard mode: pulse-echo (P-E) with dual element probes coating mode: echo-echo (E-E) with dual element probes |
| Measuring range | 1.0–300 mm in standard mode 3.0–18.0 mm in coating mode depending on the probe, material and surface condition |
| Measuring resolution | below 100.0 mm: 0.01 / 0.1 mm od 100.0 mm: 0.1 mm |
| Unit | mm or inches |
| Display | 128 × 64 dot-matrix LCD with EL backlight (42 × 57 mm) |
| Update rate | 4 Hz |
| Material velocity range | 1000–9999 m/s |
| Power Supply | 2 × AA 1.5 V battery, low battery warning |
| Operating time | up to 200 hours without backlight (alkaline batteries) |
| Automatic shut-off | after 5 minutes of inactivity |
| Operating temperature | −10°C to +50°C (to −20°C on request) |
| Size | 149 × 73 × 32 mm |
| Weight | 200 g including batteries |
| Data logger capacity | 5 files, 500 readings |
| Interface languages | English, Chinese |
| Software | Umview (PC) |
| Interface | serial RS-232C |
The measuring range also depends on the probe used — we will select one for the material, thickness and surface condition.
