Description

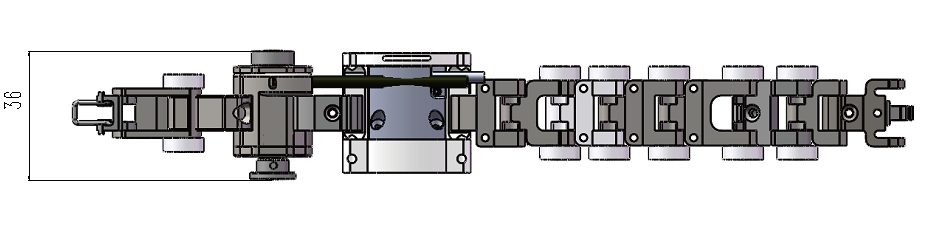

This series of small diameter pipe weld scanners is intended for situations where axial space is limited — the narrowest usable width is 36 mm. The scanner consists of a main frame module, an encoder module with a side outlet, a quick-release chain module and a locking block. By configuring different numbers of chain links it can cover pipes of various diameters.
Features
- Chain only 36 mm wide
- Encoder with a side outlet
- Quick-release chain — fewer tools when changing over
- CRS-14 single chain, CRS-15 double chain
Specifications
- Range: Φ0.8″ (20 mm) – Φ4.5″ (114.3 mm)
- Encoder step: 100 steps/mm
- Width: 36 mm
- Height: 17 mm
- IP level: IP65
- Operating temperature: −10°C do 50°C
Specifications from the manufacturer’s catalogue, Doppler Electronic Technology (2024). X-TEST — exclusive distributor for Poland, Lithuania, Latvia and Estonia.
