Description

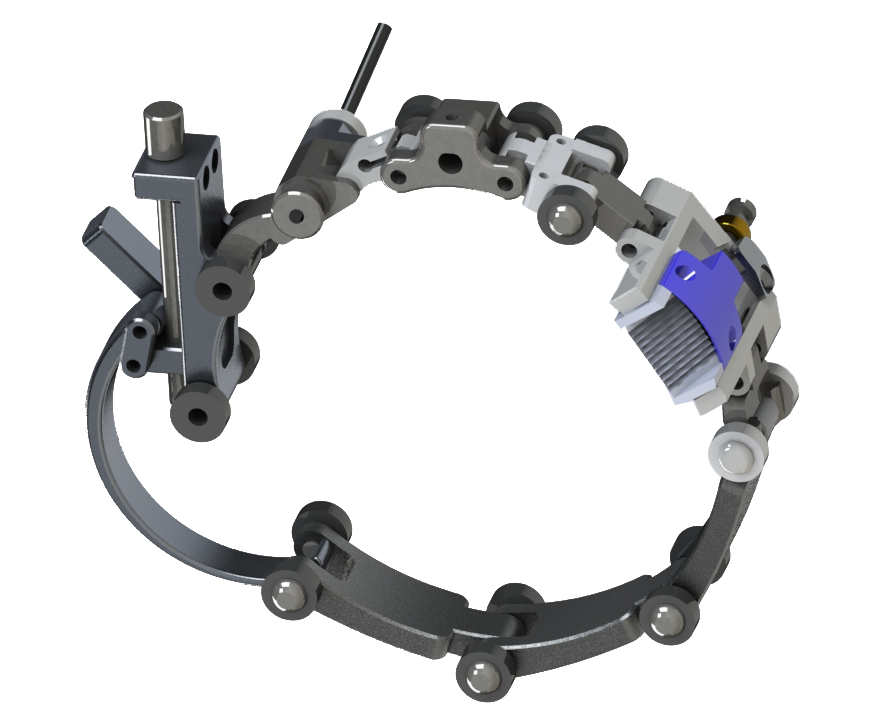

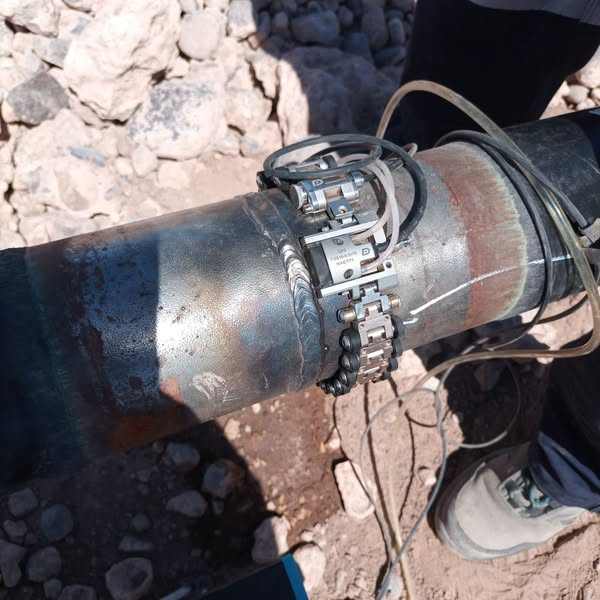

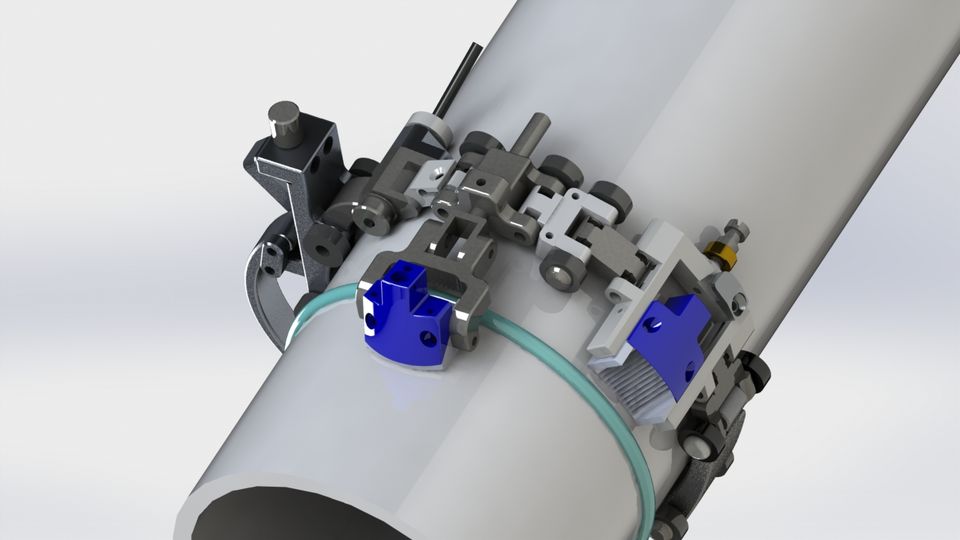

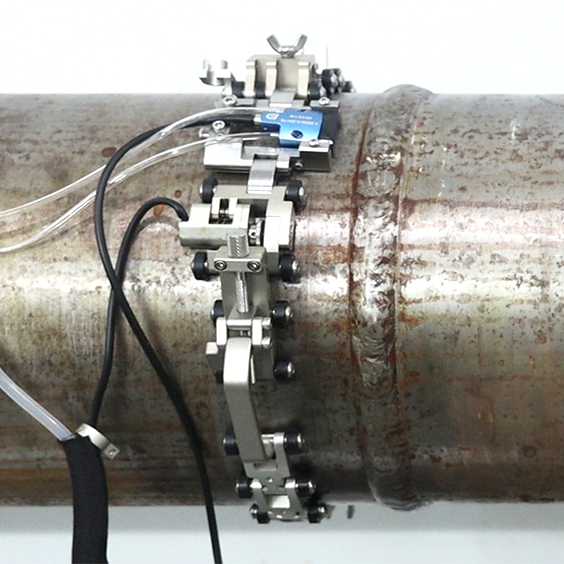

The CRS-25 is designed to inspect pipeline welds with diameters from 50 to 300 mm. It uses a Y15 probe for single-sided scanning, and the probe holder is placed in the middle of the chain, which saves the space needed for scanning. To ensure tight coupling of the wedge with the component, the CRS-25 uses a screw lock, so it is mounted more stably on the pipe surface.
Features
- Probe holder on the chain centreline — saves space
- Bolt-type locking — stable wedge coupling
- Light structure, quick-detachable chain
- Supports side-out PA probes 32–48 mm wide
- Options: DP2 probe holder (2SP0544), TOFD module (2SP0542), chain extension module to 600 mm (2SP0124, 2SP0151), water feed module (1SP0134)
Specifications
- Range: OD 50–300 mm
- Minimum passable gap: 50 mm
Specifications from the manufacturer’s catalogue, Doppler Electronic Technology (2024). X-TEST — exclusive distributor for Poland, Lithuania, Latvia and Estonia.
