Description

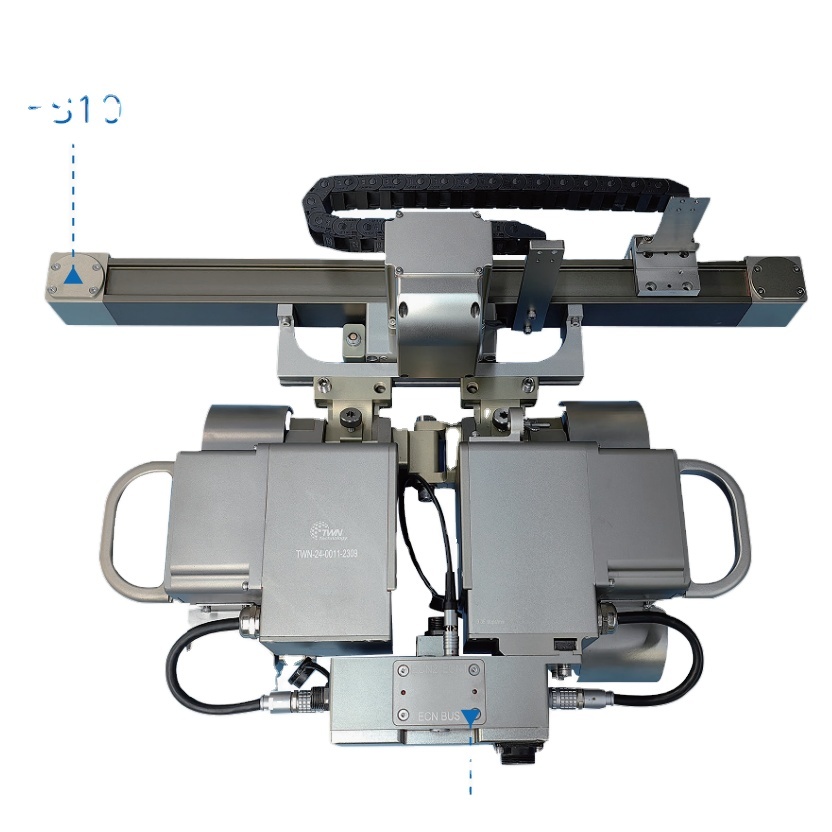

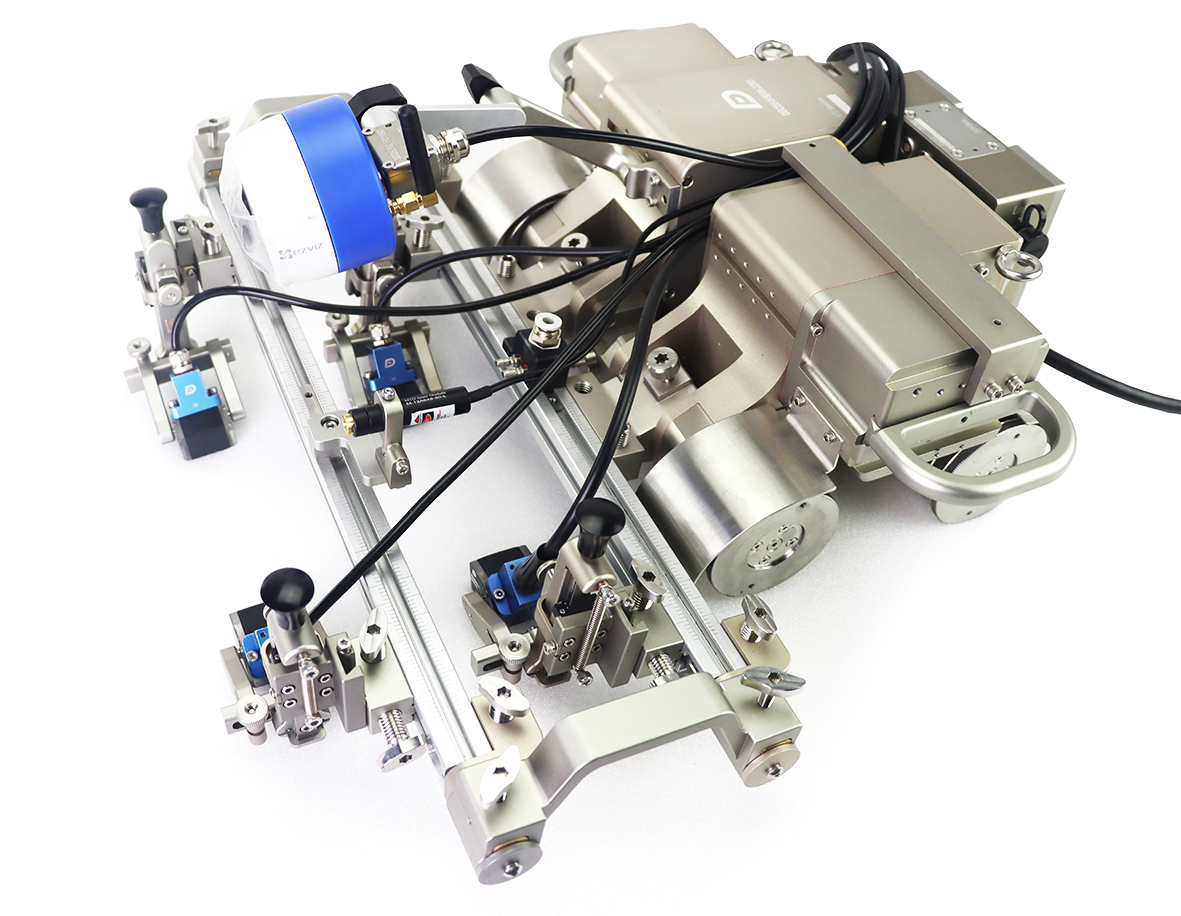

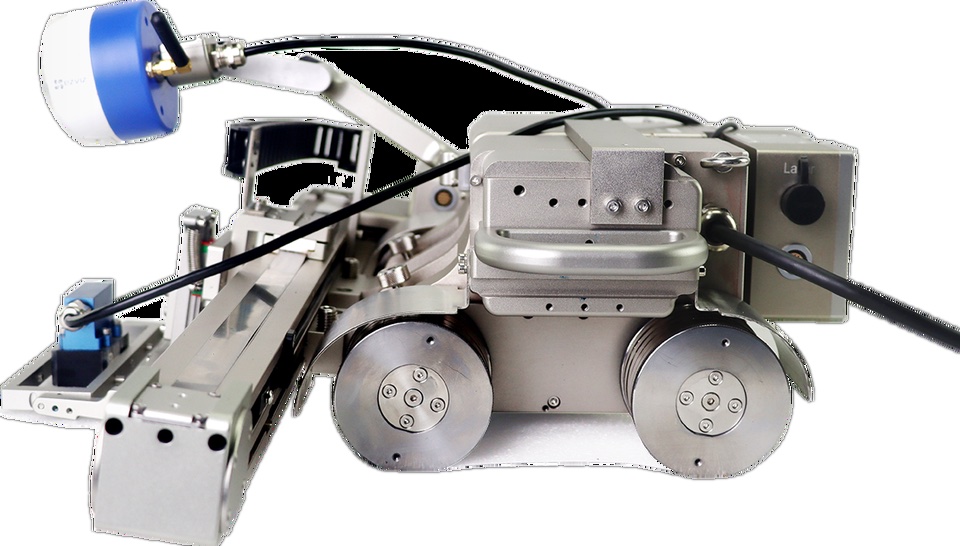

The DSC03 is a multi-function electric scanner intended to carry the weld scanning arm and the transverse corrosion scanning arm. It stands out for very high stability and a high payload. Adhesion is provided by a permanent magnet, so the device stays on the surface even if power is lost.
Features
- Permanent magnet — adsorption maintained after power failure
- Scanning modes: horizontal, vertical, raster and sawtooth
- Supports conventional UT, phased array and TOFD probes
- 1 to 4 probes as required
- Vertical, horizontal and inverted movement
- WiFi camera
- Electric water pump for couplant supply (lift up to 20 m)
- With the FC05 arm — longitudinal and circumferential weld inspection
Specifications
- Crawler speed range: 5–120 mm/s
- Scanning axis speed range: 10–100 mm/s
- Power Supply: AC 220 V or DC 24 V
- Operating temperature: −10°C do 50°C
- IP level: IP66
- Circumferential scanning, inner wall: ID ≥ 2500 mm
- Circumferential scanning, outer wall: OD ≥ 300 mm
- Axial scanning, outer wall: OD ≥ 500 mm
- Scanning arm stroke (DSC03+): 300 mm
Specifications from the manufacturer’s catalogue, Doppler Electronic Technology (2024). X-TEST — exclusive distributor for Poland, Lithuania, Latvia and Estonia.
