Description

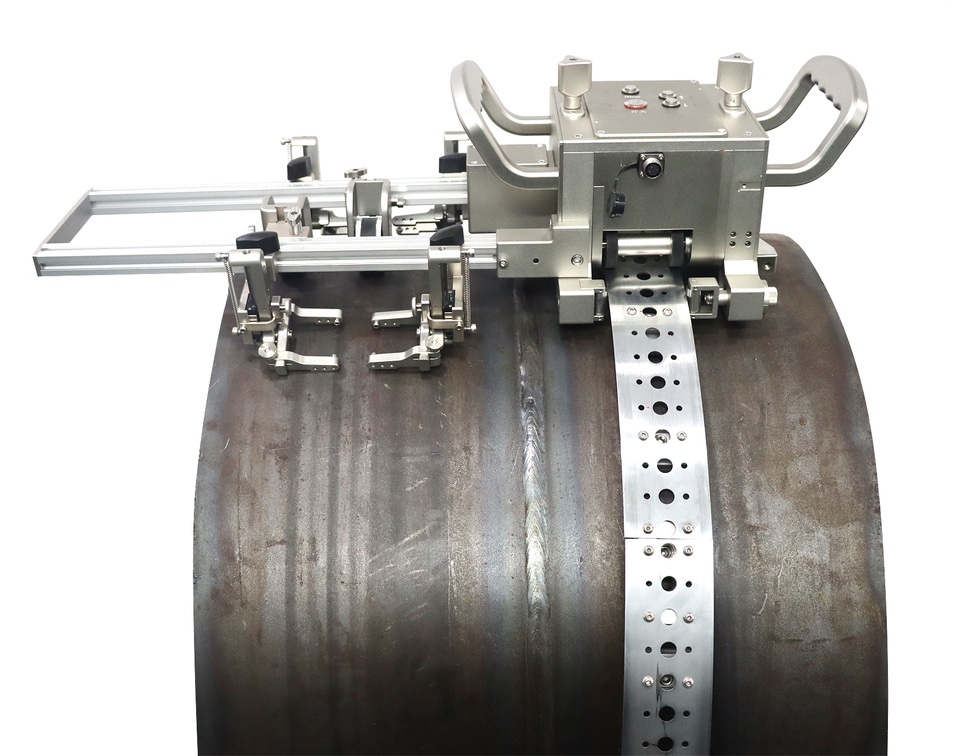

The scanner is fitted with a matched pipeline guide, and its body is a remotely controlled crawler. It is suitable for metallic and non-metallic pipes. The steel guide band is fixed on the round component and the crawler runs along the guide carrying several pairs of probes. The rail design keeps a constant distance between the probe and the weld, which allows fast, automated inspection of circumferential welds. Different diameters require different guides.
Features
- Steel belt guide rail — constant probe-to-weld distance
- Wired or wireless remote control
- Several probe pairs at once
- Metal and non-metal pipes
Specifications
- Range: OD ≥ 400 mm
- Crawler speed: 5–60 mm/s
- Encoder step: 24 steps/mm
- Repeated positioning accuracy: ± 1 mm
- IP level: NEMA 4, IP65
- Operating temperature: −20°C do +60°C
- Power Supply: 110/220 V AC or 20–30 V DC
Specifications from the manufacturer’s catalogue, Doppler Electronic Technology (2024). X-TEST — exclusive distributor for Poland, Lithuania, Latvia and Estonia.
