Description

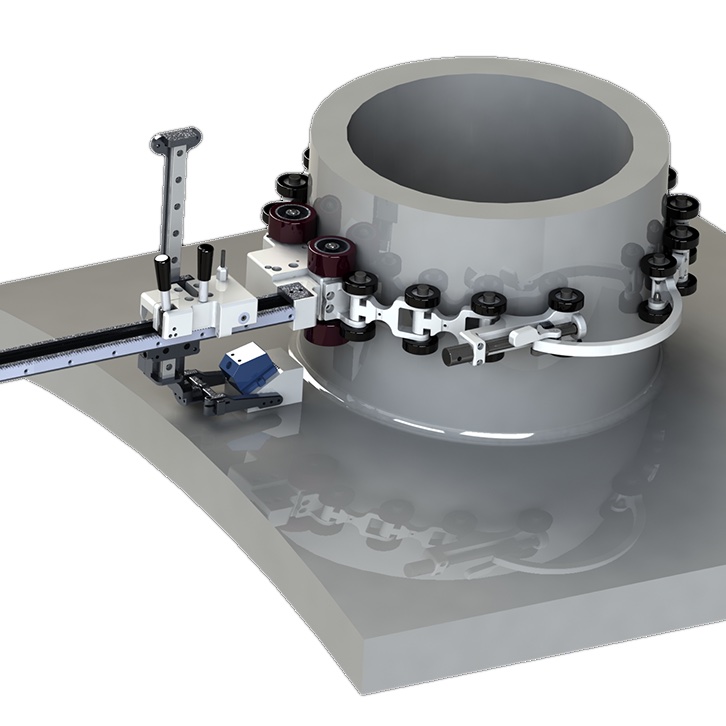

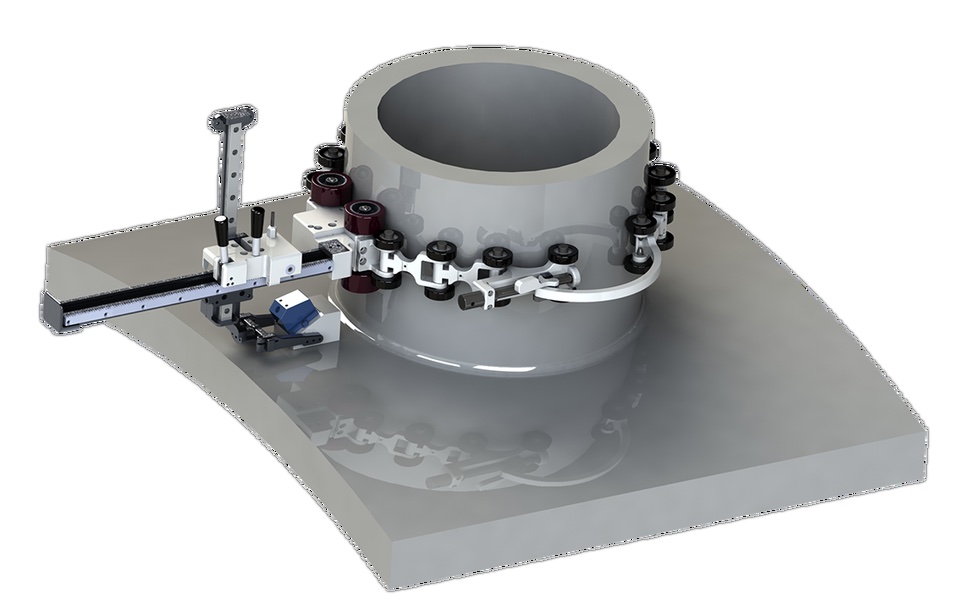

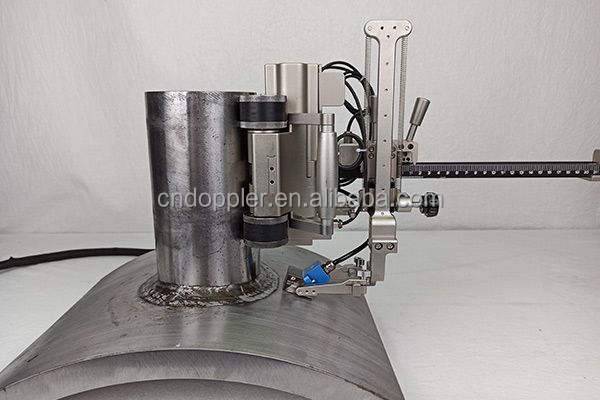

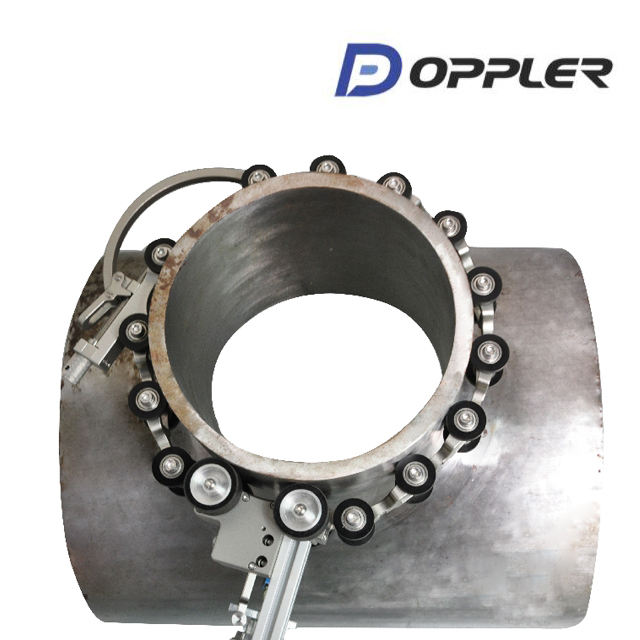

The MOS07 was designed to inspect welds of complex nozzle connections, providing accurate inspection data. The flexible mounting arrangement stably holds a single probe with a maximum mounting width of 48 mm and is compatible with different probe types. The MOS07-DD version is automated: a small magnetic crawler guides the scanner in the axial direction of the nozzle, controlled from buttons on the handle.
Features
- Dual-axis angle and position encoder — accurate probe location relative to the weld
- Real-time cross-section at each scanning position
- Probe angle adjustable to the weld angle
- Quick-release chain
- Manual (MOS07) and automatic (MOS07-DD) versions
Specifications
- Branch pipe diameter: φ100–300 mm
- Main pipe diameter: ≥ φ600 mm
- Max. clamping width: 48 mm
Specifications from the manufacturer’s catalogue, Doppler Electronic Technology (2024). X-TEST — exclusive distributor for Poland, Lithuania, Latvia and Estonia.
