Description

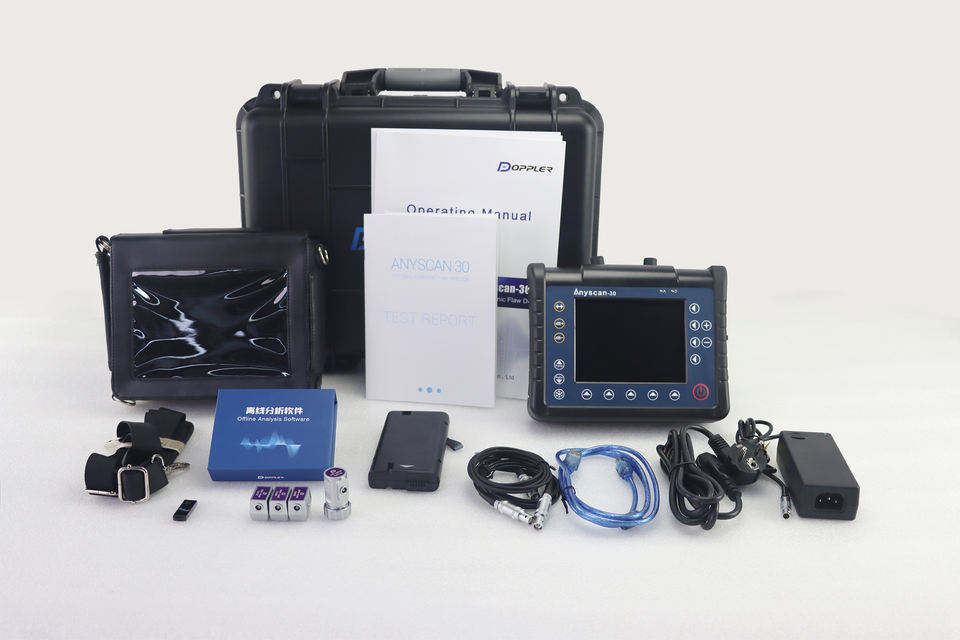

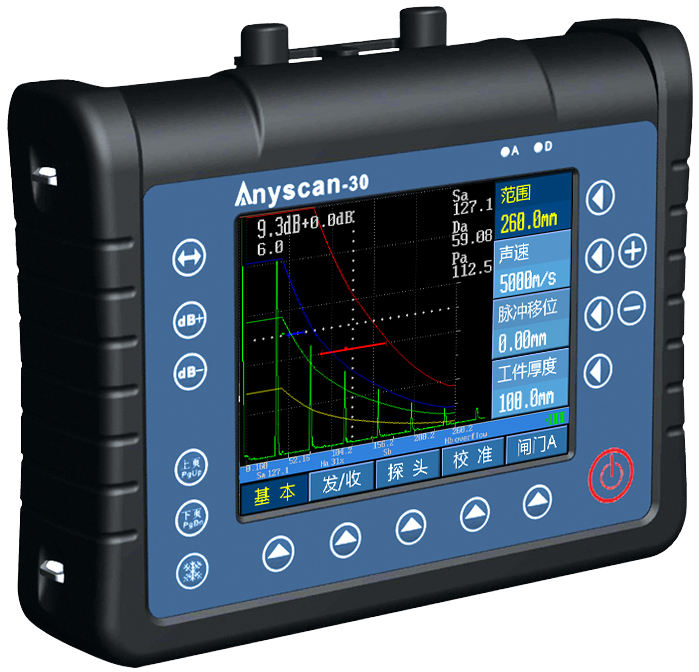

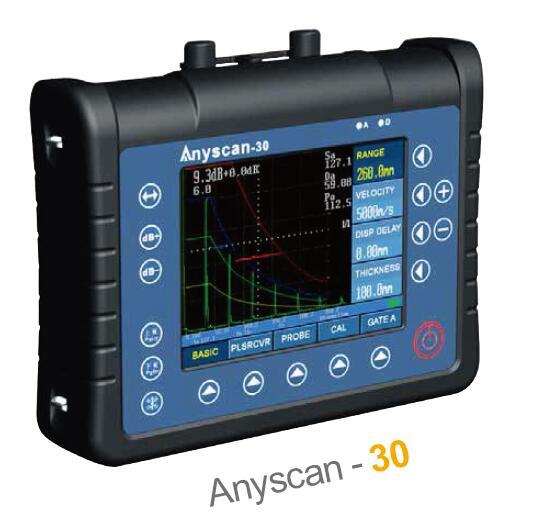

The Anyscan-30 is a portable ultrasonic flaw detector for conventional inspection: welds, forgings, castings and parent material. The compact housing and key operation suit field work, and the built-in weld illustration helps relate indications to the real geometry of the joint.
Key features
- Spike and square wave excitation — excitation matched to the probe and the material
- Weld illustration on screen — indications related to the geometry of the joint
- DAC and AVG curves — assessment of indications according to inspection standards
- Peak hold and envelope — make it easier to capture the maximum of the echo
- Automatic gain and surface correction — faster preparation for the inspection
- Series recording and RF mode — documenting the inspection and viewing the raw signal
Specifications
| Model | Anyscan-30 |
| Type of inspection | conventional ultrasonic (UT) |
| Pulse Shape | spike wave / square wave |
| Assessment curves | DAC, AVG |
| Measurement functions | peak hold, envelope, surface correction, automatic gain |
| Presentation | A-scan, weld illustration, RF mode |
| Data Storage | series recording |
| Interface languages | English, Chinese |
A product from the manufacturer’s earlier line, outside the 2026 catalogue — full specifications and probe selection on request.
