Description

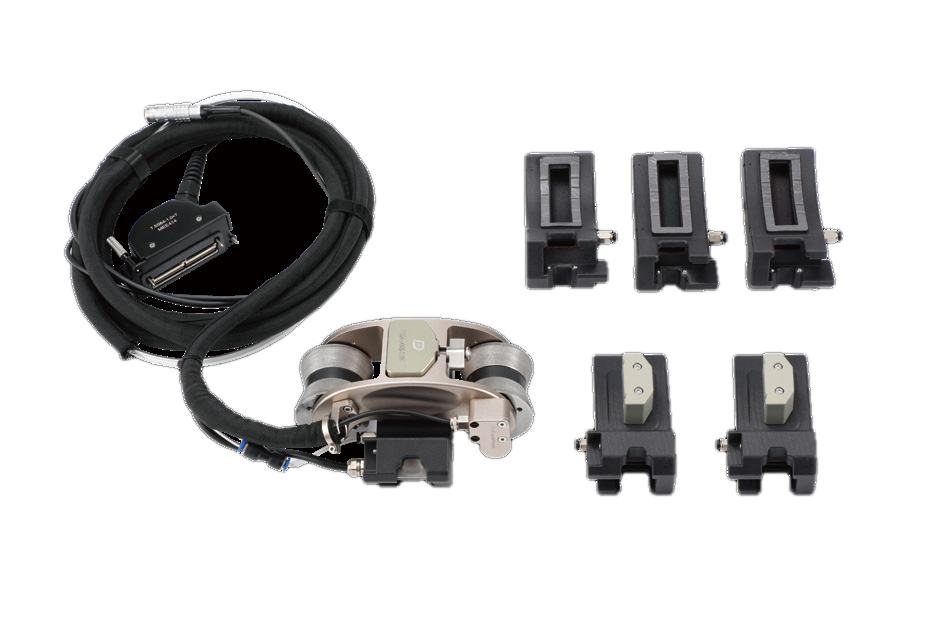

The FS05 is used for axial corrosion inspection of straight pipes. It consists of a magnetic wheel, a support frame, a water jacket, an encoder and a concave array probe. The water jacket and probe are selected according to the pipe diameter and the required water layer.
Features
- Concave array probe matched to the pipe curvature
- Magnetic wheel — stable coupling
- Water jacket and probe selected to the diameter
Specifications
- Minimum customisable diameter: 19 mm
- Typical range: OD 40–150 mm
Specifications from the manufacturer’s catalogue, Doppler Electronic Technology (2024). X-TEST — exclusive distributor for Poland, Lithuania, Latvia and Estonia.
