Description

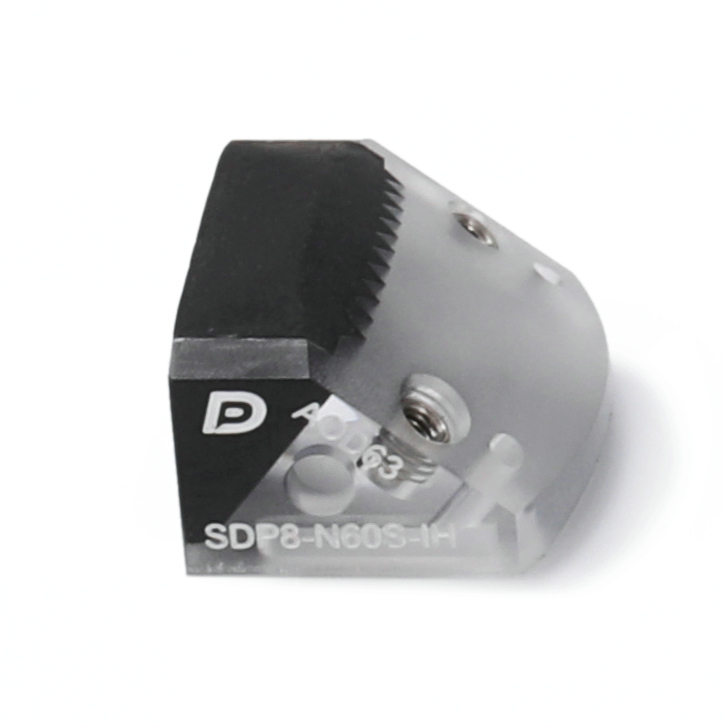

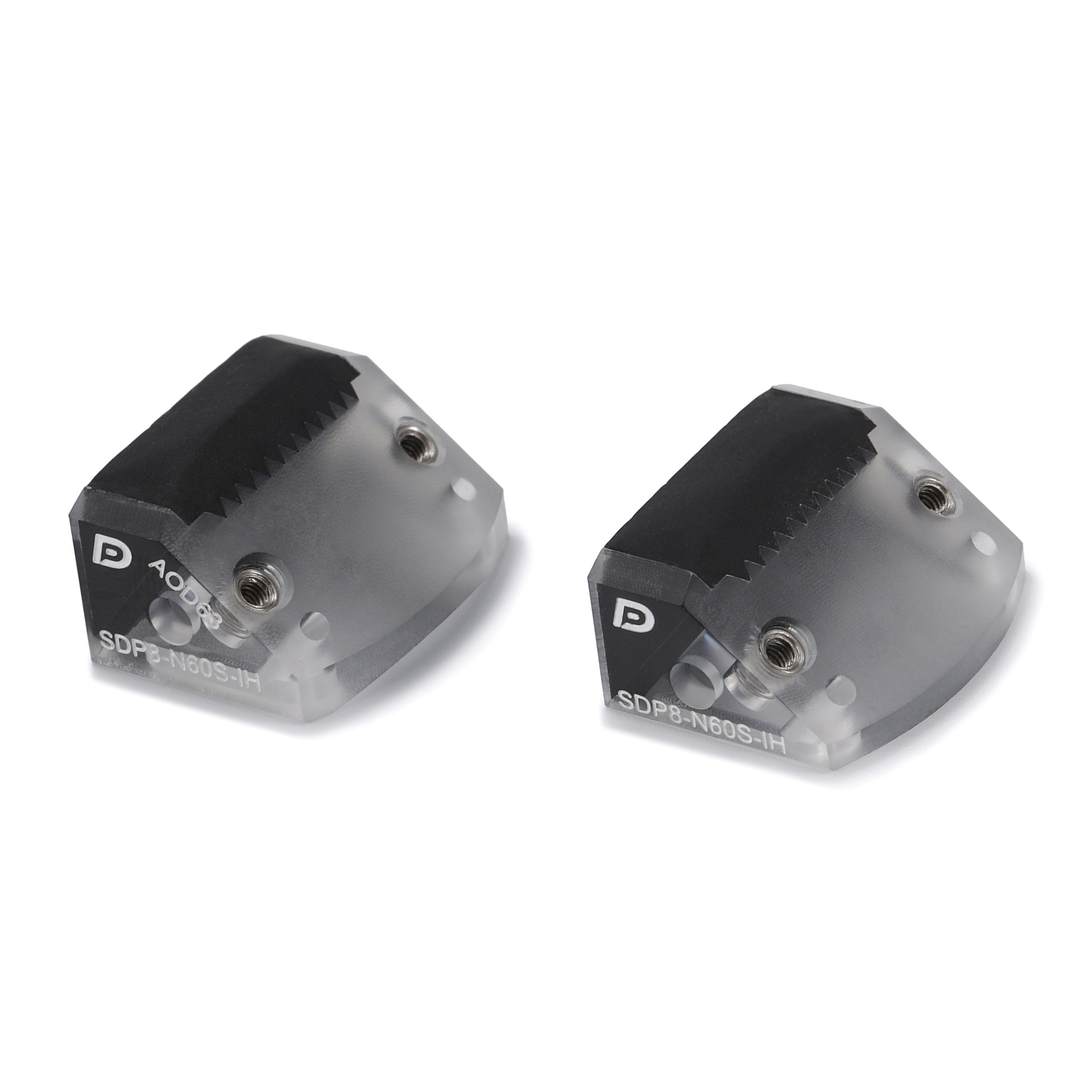

Wedges are normally used for shear wave (SW) or longitudinal wave (LW) inspection at angles from 30° to 70°, providing standard refraction angles of 0°, 45°, 55° and 60° in steel. Wedge shape and parameters can be made to order.
Features
- Refraction angles in steel: 0°, 45°, 55°, 60°
- Composite anti-wear screws for easily scratched surfaces
- The high temperature wedge withstands 260°C
- Shape and parameters to order
Specifications
- Types: 0° wedge, angle wedge, anti-wear wedge, dual array wedge, water wedge, high temperature wedge

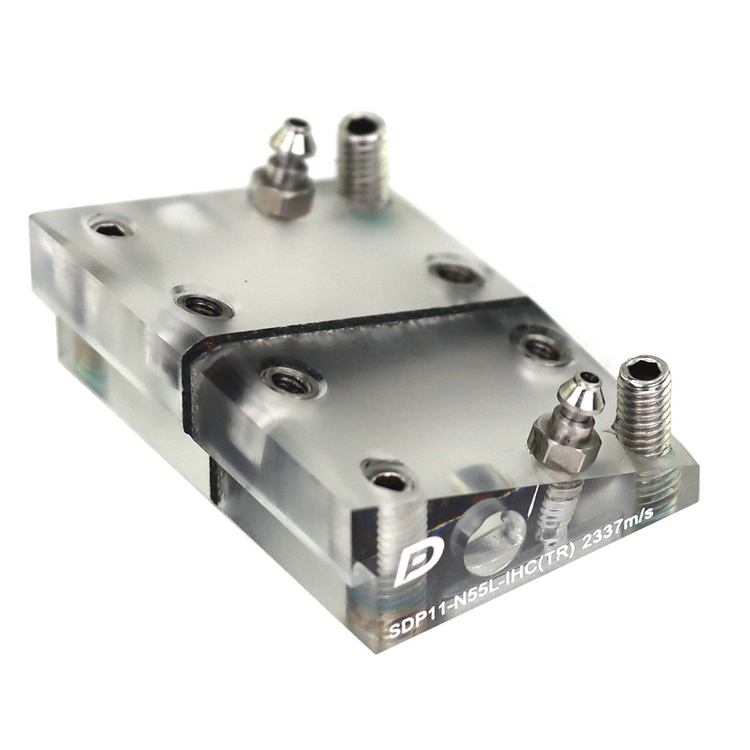

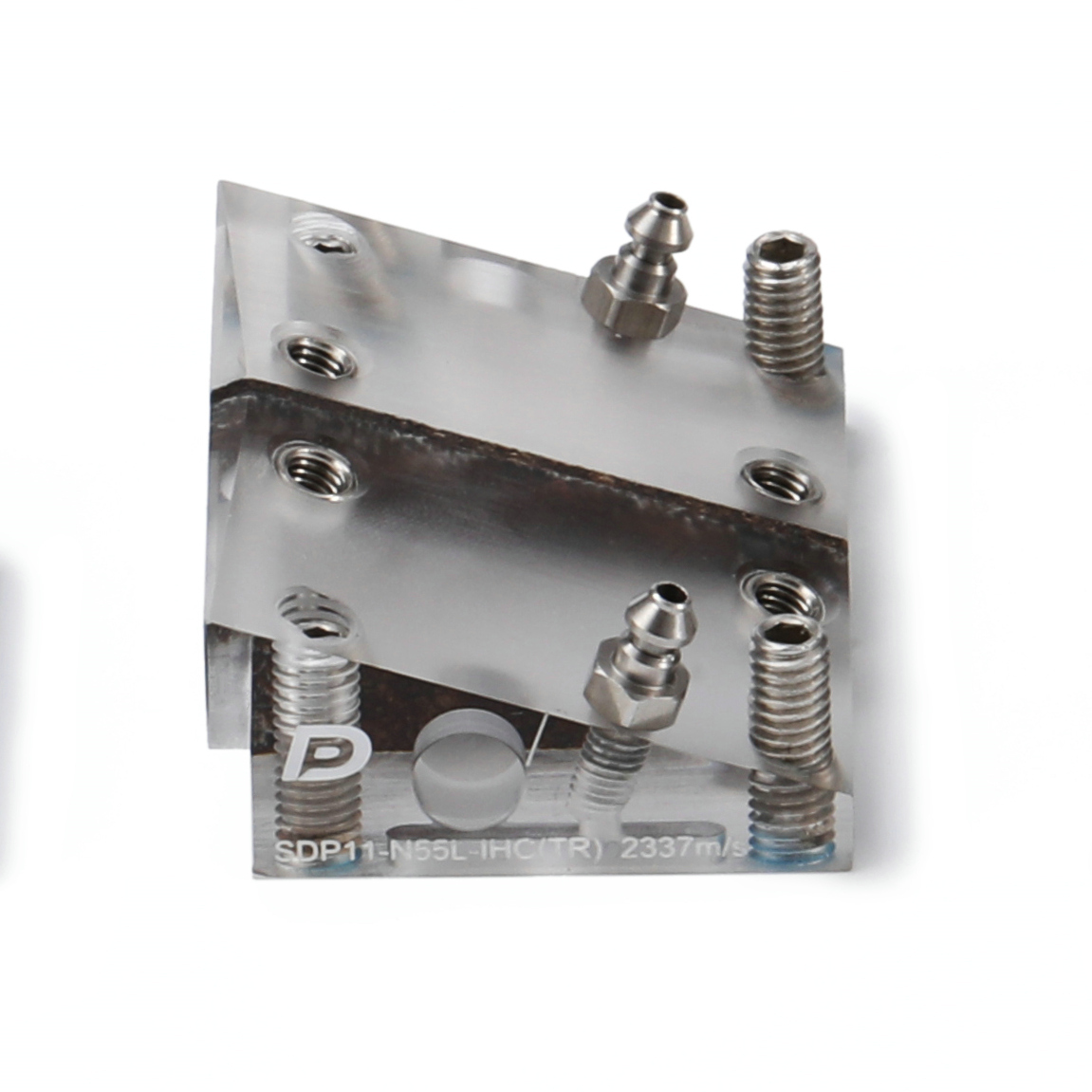

- Example models: SDP3-N0L-H (0° LW), SDP2-N55S-IH (55° SW), SDP2-N55S-IHC-AOD326 (anti-wear), SDP11-N55L-IHC (dual array TR, roof angle 3.7°, F=15), SDP28-N55S-IH(HT) (high temperature), SDP8-N65L-IH-AOD270 (water, 65° LW)
Specifications from the manufacturer’s catalogue, Doppler Electronic Technology (2024). X-TEST — exclusive distributor for Poland, Lithuania, Latvia and Estonia.
