Description

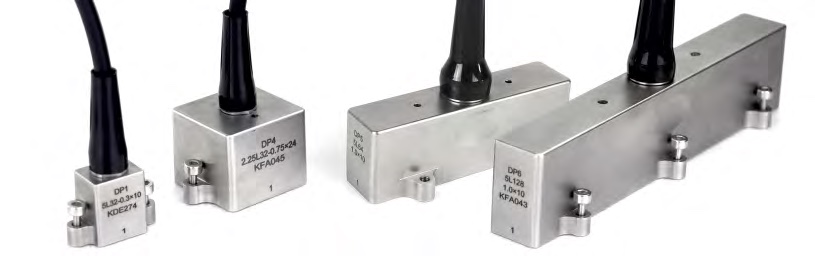

A classic array probe, the standard series for phased array instruments. It is used in most typical inspection scenarios. Doppler phased array probes cover a frequency range from 0.5 MHz to 20 MHz, element counts from 8 to 1024 and an internal pitch from 0.2 mm to 2.0 mm.
Features
- Element layout: linear (L), matrix (M), annular (A), concave (C), convex (V), wedge-integrated
- Frequency range 0.5–20 MHz
- Element count from 8 to 1024
- Internal pitch 0.2–2.0 mm
- Wedges, connectors, adapters and extensions available to order
- Non-standard probes can be built to customer requirements
Specifications
- Sensitivity conformity: ±2 dB
- Sensitivity difference between batches: ±2 dB
- Operating temperature: −20°C do 50°C
- Storage temperature: −30°C do 50°C
- Test standard: JB/T 11731-2013
- Warranty: 12 months
Specifications from the manufacturer’s catalogue, Doppler Electronic Technology (2024). X-TEST — exclusive distributor for Poland, Lithuania, Latvia and Estonia.
