Description

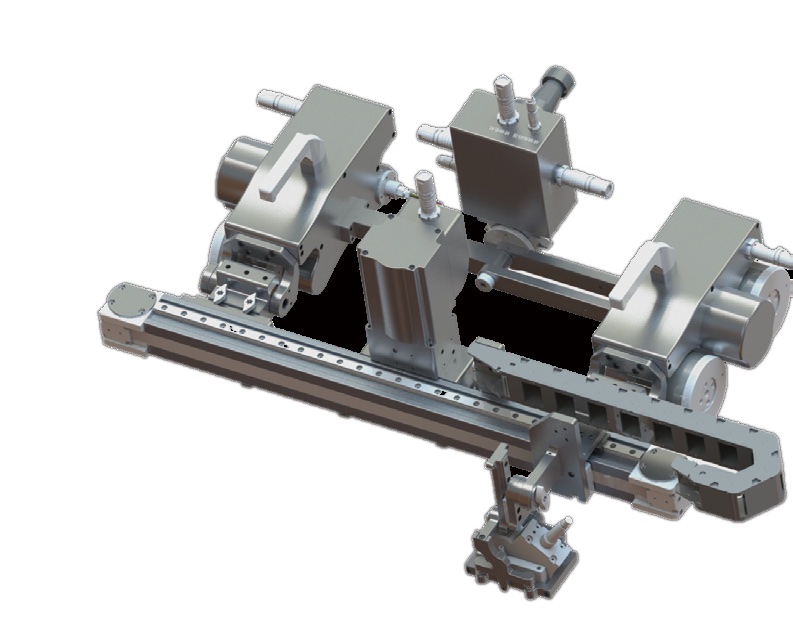

The DSC40 is a multi-function electric scanner that meets different inspection requirements by changing the arm: for weld scanning, for transverse corrosion scanning or for scanning along a curve. It stands out for its light construction, high payload and simple operation.
Features
- Permanent magnet — adsorption maintained after power failure
- Interchangeable arms: welds, transverse corrosion, arc scanning
- Supports conventional UT, phased array and TOFD probes
- 1 to 4 probes for weld inspection
- Scanning modes: horizontal, vertical, raster and sawtooth
- With the FC05 arm — longitudinal and circumferential welds (up to 6 probes on longitudinal seams)
Specifications
- Maximum load on a vertical plane: 12 kg
- Crawler speed range: 5–150 mm/s
- Scanning axis speed range: 10–100 mm/s
- Power Supply: AC 220 V or DC 24 V
- Operating temperature: −10°C do 50°C
- IP level: IP66
- Circumferential scanning, inner wall: ID ≥ 460 mm
- Circumferential scanning, outer wall: OD ≥ 200 mm
- Axial scanning, outer wall: OD ≥ 400 mm
- Max. probe width: 50 mm
Specifications from the manufacturer’s catalogue, Doppler Electronic Technology (2024). X-TEST — exclusive distributor for Poland, Lithuania, Latvia and Estonia.
