Description

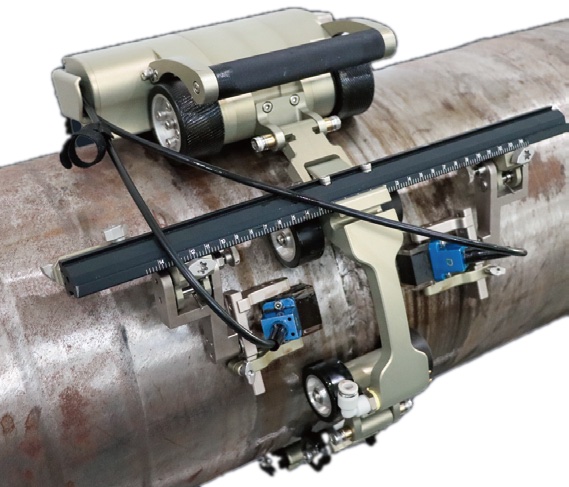

The DSC51 is used primarily for pipeline weld inspection. It is an electric chain scanner, it can be fitted with two probes and it also works on non-magnetic materials. The standard version has two encoders: one on the chain records the position on the nozzle, the other on the probe stepping axis — which improves the accuracy and reliability of the results. The larger the pipe diameter, the greater the risk of drift during inspection.
Features
- Two encoders: position on the chain and probe stepping axis
- Works on non-magnetic materials
- Standard version: nozzle from φ50 mm, main pipe from φ500 mm
- Custom version: nozzle φ20–50 mm, main pipe from φ500 mm
Specifications
- Diameter range: 200–800 mm
- Minimum passable gap: 70 mm
- Encoder IP rating: IP67
Specifications from the manufacturer’s catalogue, Doppler Electronic Technology (2024). X-TEST — exclusive distributor for Poland, Lithuania, Latvia and Estonia.
