Description

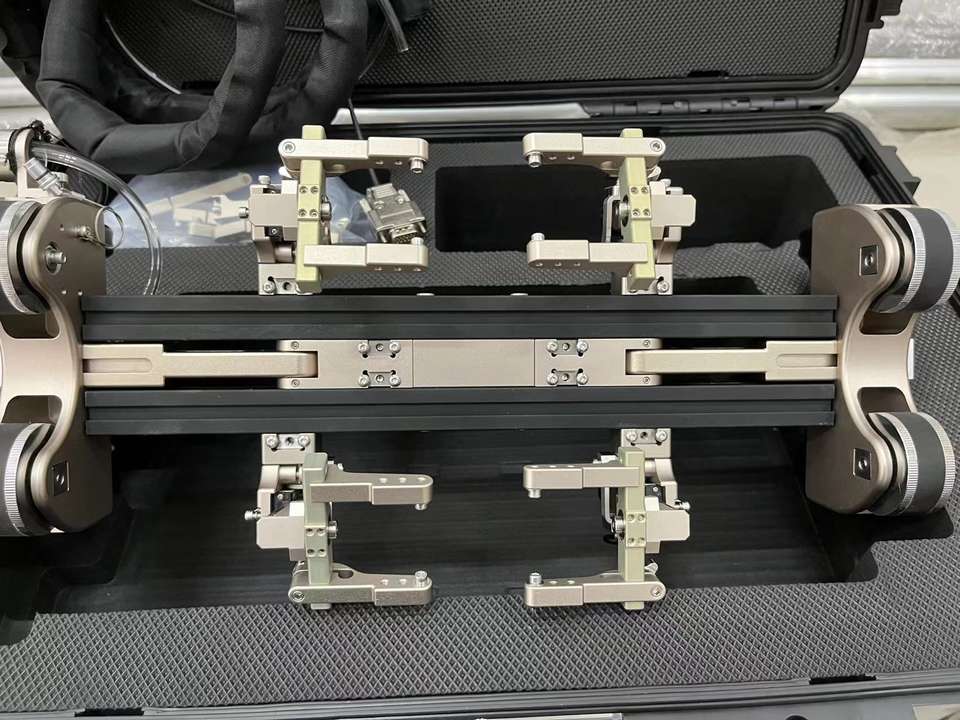

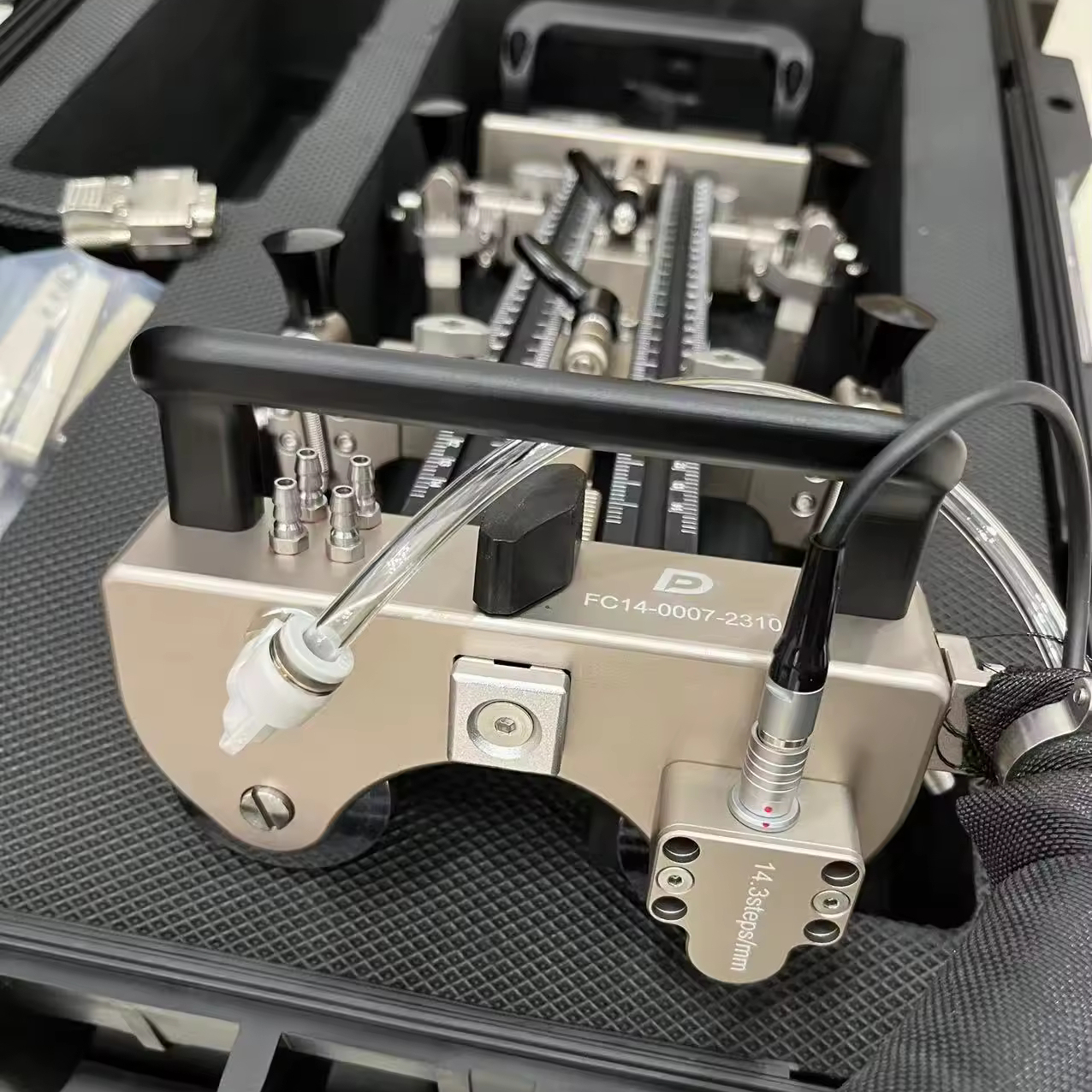

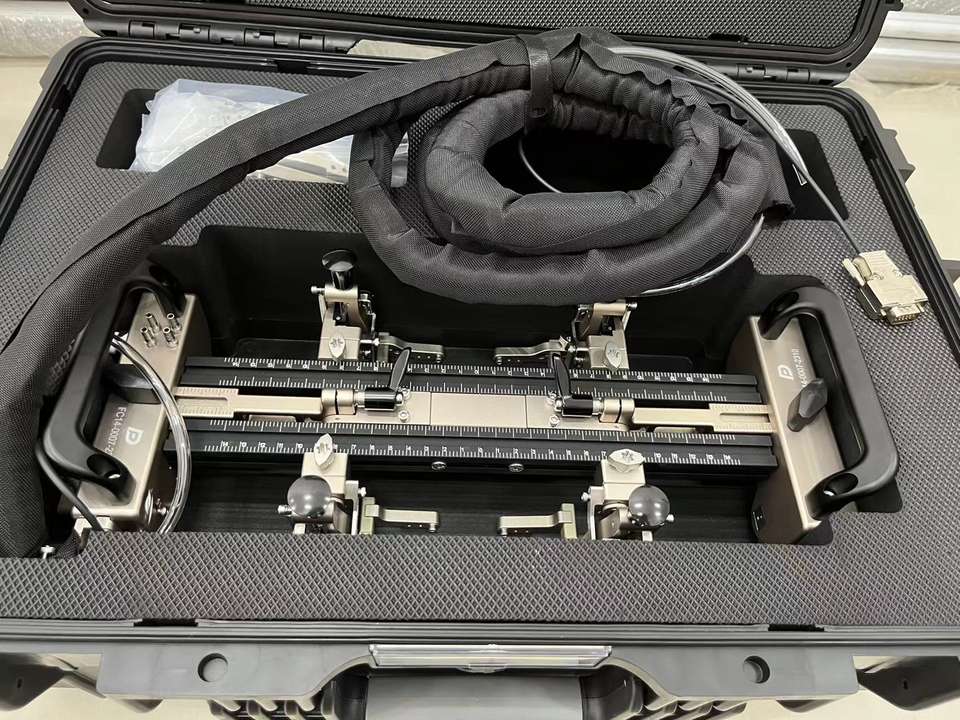

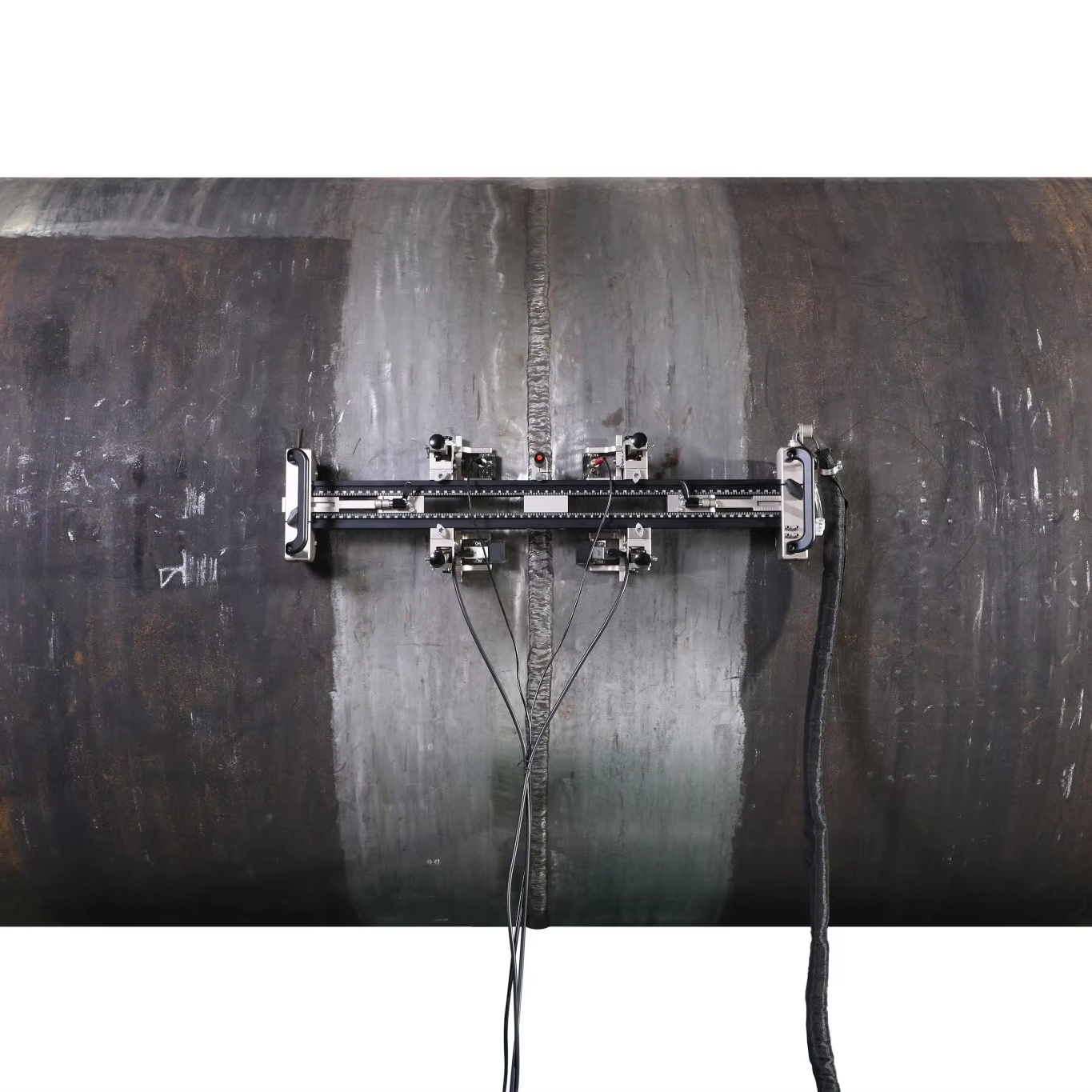

The FC14 is a scanner intended for pipeline weld inspection. The device mounts four probes at once, supporting inspection of longitudinal and axial welds. The design comprises magnetic wheels for stable adhesion, a water connection supplying couplant to the probe, a mounting frame, a graduated strip giving the operator an accurate position reference, and a support frame.
Features
- Up to four probes at once
- Four independent movable magnetic wheels
- Couplant water port
- Scale bar — clear position reference
- Laser pointer
- Optional oblique parallel scanning bracket (codes 2SP0446, 2SP0447)
Specifications
- Minimum detection diameter: 150 mm
Specifications from the manufacturer’s catalogue, Doppler Electronic Technology (2024). X-TEST — exclusive distributor for Poland, Lithuania, Latvia and Estonia.
