Description

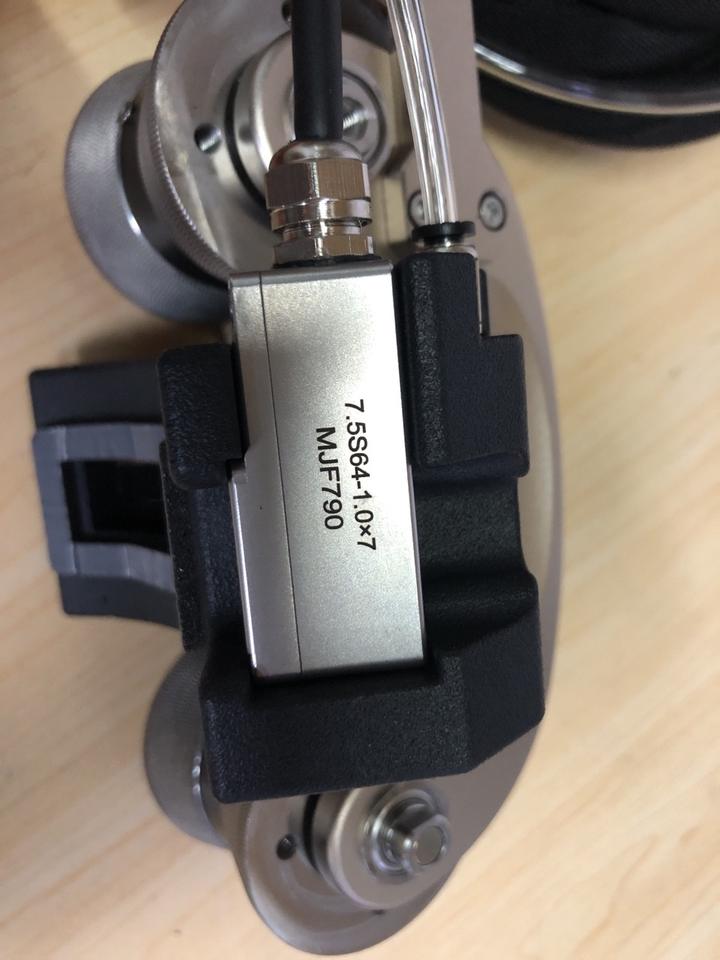

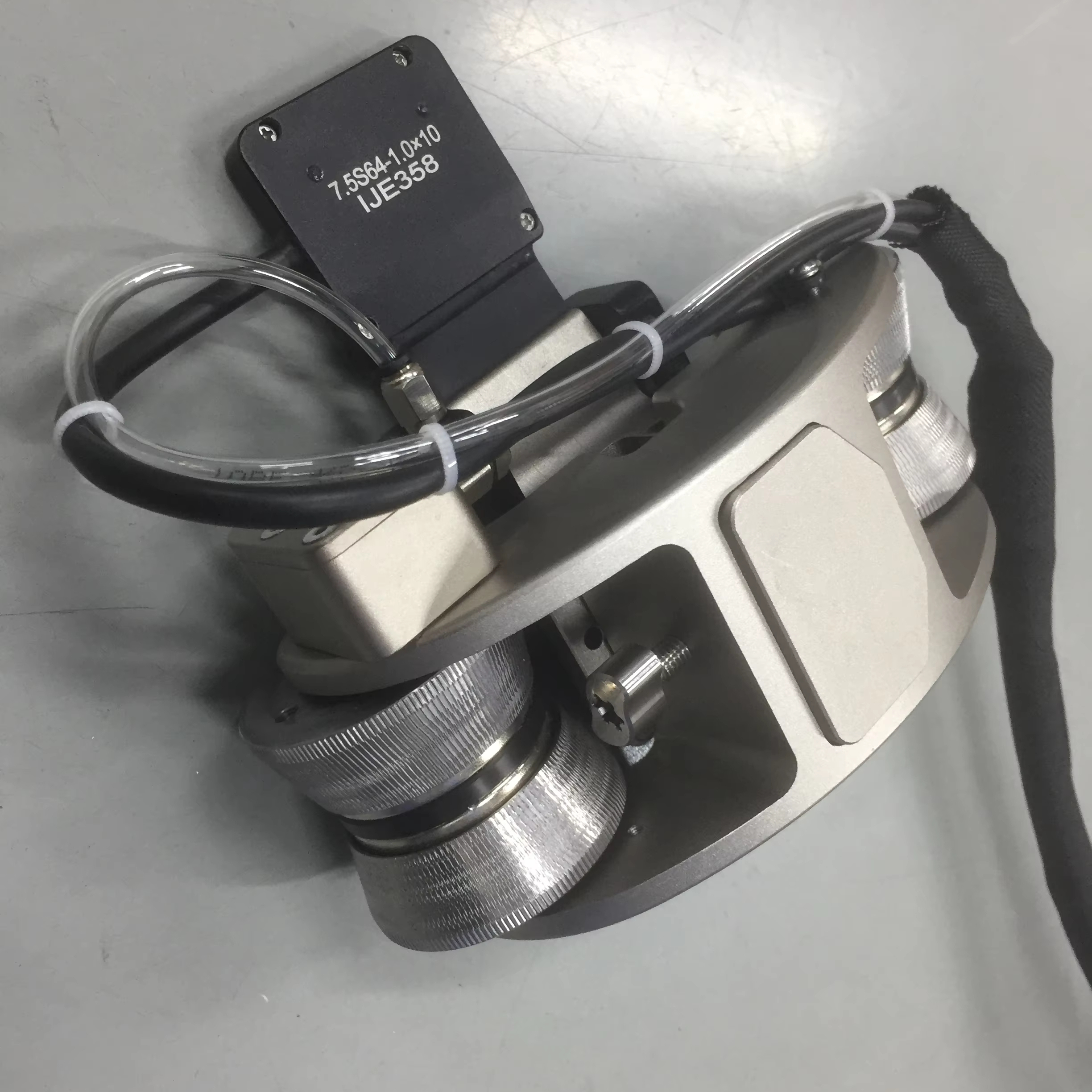

The FS04 was designed for axial corrosion inspection of straight pipes. It consists of a magnetic wheel, a support frame, a water jacket, an encoder and a flexible probe. For pipes of different diameters the device requires a matching water jacket, made to order. When inspecting several parallel pipelines, check that the pipe centre spacing will not cause a collision.
Features
- Magnetic wheel — stable adsorption and coupling

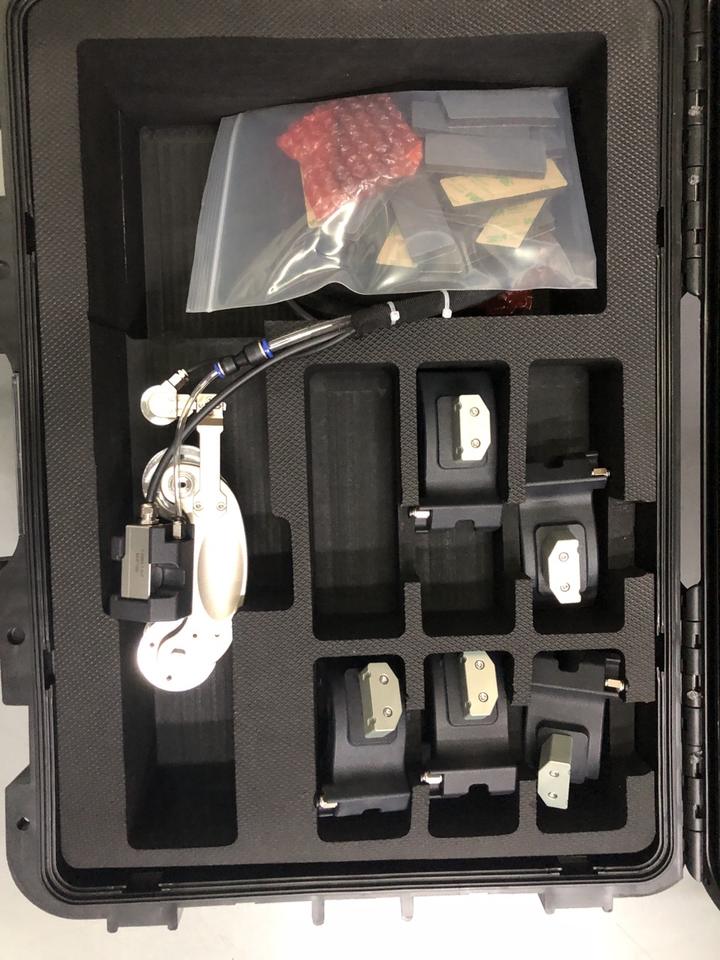

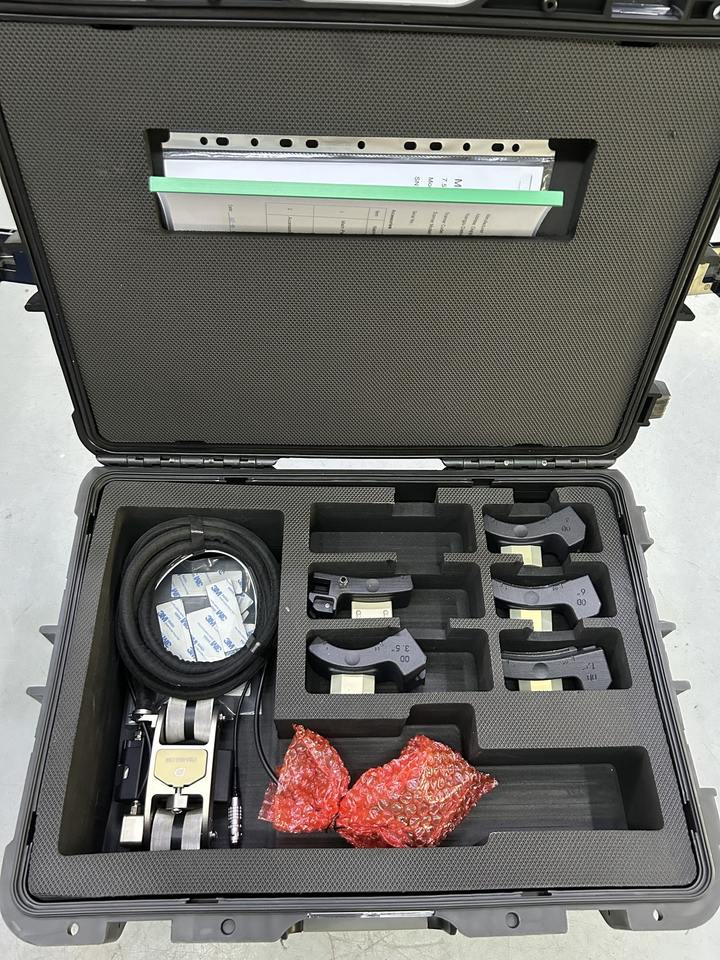

- Water jacket made to the pipe diameter
- Encoder recording the scan path
- Changing diameter needs no probe change — only the water jacket
Specifications
- Diameter range: from 38 mm upwards
- Water jacket tolerance: OD ±3 mm
Specifications from the manufacturer’s catalogue, Doppler Electronic Technology (2024). X-TEST — exclusive distributor for Poland, Lithuania, Latvia and Estonia.
