Description

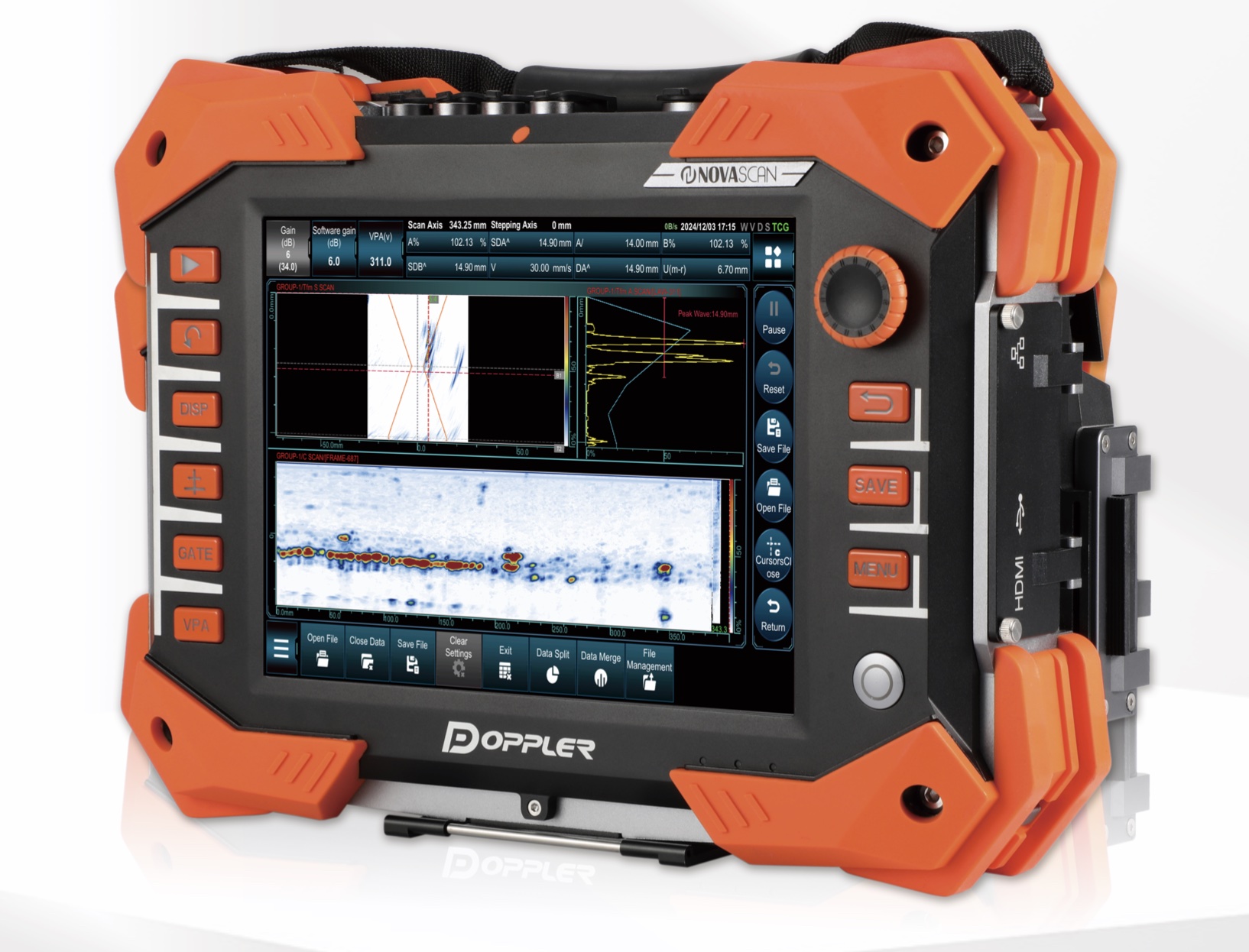

The Novascan V1 performs real-time multi-mode imaging: FMC-TFM, PWI-TFM, phased array and dual-channel TOFD and UT inspection at the same time. It supports linear and matrix probes, and its application range covers corrosion, welds, pipelines and tanks, with software upgrades available. The IP65 aluminium housing and operation from −10°C to 45°C suit the instrument to industrial conditions.
Key features
- Real-time multi-mode imaging — FMC-TFM · PWI-TFM · PA · dual-channel TOFD/UT at the same time
- Full match to the application — linear and matrix probes; corrosion, welds, pipelines, tanks; software upgrades
- Simulation and intelligent analysis — 3D simulation, real-time cross-section update when inspecting nozzles, guided setup, AI recognition of adhesive joints and corrosion
- Industrial construction — IP65 aluminium housing, −10°C to 45°C range, dual batteries, 5 hours of continuous operation
Specifications
| Parameter | Phased array module | Conventional UT |
|---|---|---|
| Configuration | ||
| Receive / transmit channels | 32/128PR, 32/64PR, 16/128PR, 16/64PR | 2 / 2 |
| Velocity | 340–15240 m/s | 340–15240 m/s |
| Pulser | ||
| Working mode | PE / PC / TT | PE / PC / TT / TOFD |
| Voltage | 50 V / 100 V | 100 V / 200 V / 400 V |
| Pulse Shape | Negative Square Wave | Negative Square Wave |
| Pulse Width | 30–1000 ns / 2.5 ns | 30–1000 ns / 2.5 ns |
| Rise Time | < 8 ns | < 8 ns |
| PRF | 40 kHz | 24 kHz (12 kHz per channel) |
| Delay | 20 μs / 2.5 ns | 20 μs / 2.5 ns |
| Receiver | ||
| Gain | 0–110 dB | 0–110 dB |
| Bandwidth | 0.5–20 MHz | 0.5–20 MHz |
| Delay | 20 μs / 2.5 ns | 20 μs / 2.5 ns |
| Data Acquisition | ||
| Sampling Rate | 100 MHz | 100 MHz |
| No. of Focal Laws | 512 | NA |
| Focus Type | true depth / sound path / projection / focal plane | NA |
| Rectification Mode | FW / HW+ / HW− / RF | FW / HW+ / HW− / RF |
| Maximum A-scan length | 16384 | 16384 |
| Scan/Display | ||
| Type | Linear/sector scan/compound scan/TFM | NA |
| Display mode | A/B/C/D/S/3D/TFM/TopC/Band chart | A/B/C/Band chart |
| Unit | mm/inch | mm/inch |
| TCG | ||
| Point | 16 | 16 |
| Gain Range | 40 dB | 40 dB |
| Max. inclination | 40 dB / μs | 40 dB / μs |
| Data Storage | ||
| ROM | external storage / 128 GB SSD | |
| Single File Size | 4 GB | |
| Report | ||
| Formats | WORD, PDF, EXCEL | |
| Display Screen | ||
| Size | 10.4 inch | |
| Resolution | 1024 × 768 px | |
| Visible Area | 211 × 158 mm | |
| Type | Industrial IPS Capacitive Touch Screen | |
| I/O ports | ||
| USB | 2 | |
| Ethernet | 1; 1000 Mb/s | |
| WiFi | external USB module supported (transmission to order) | |
| Video Output | HDMI 1.4b | |
| Encoder | LEMO 16-pin | |
| Language | ||
| Supported | Chinese/English/French/German/Russian/Italian | |
| Power Supply | ||
| DC Supply Voltage | 15 V DC | |
| Battery Type | lithium 11.25 V / 99.6 Wh | |
| Continuous Working Time | about 5 hours | |
| Case | ||
| Size | 360 × 260 × 130 mm | |
| Weight | 6 kg (without battery) · 6.5 kg (with one) · 7 kg (with two) | |
| IP level | IP65 | |
Specifications reproduced 1:1 from the manufacturer’s catalogue, Doppler Electronic Technology (2026, EN edition). X-TEST — exclusive distributor for Poland, Lithuania, Latvia and Estonia.
