Phased array probes — wheel series

Name: Phased array probes — wheel series
Brand: Doppler
SKU: PA-WHEEL

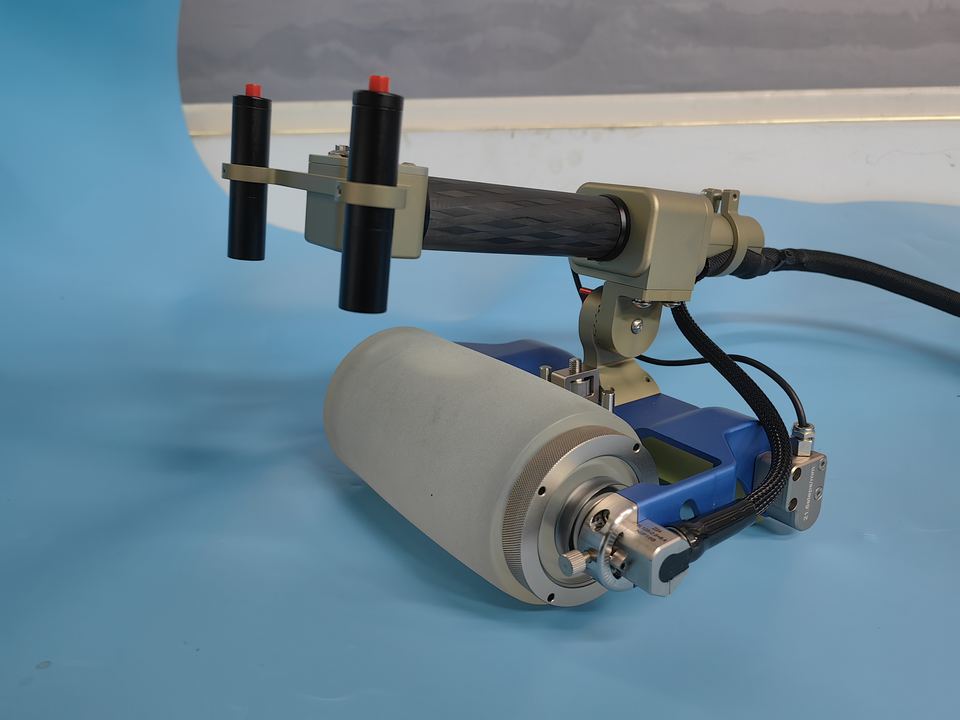

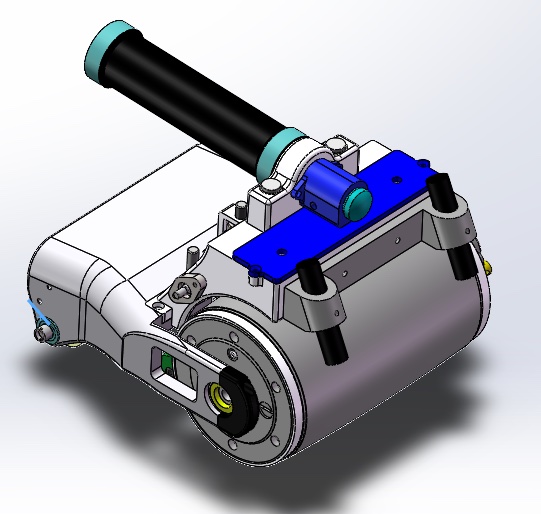

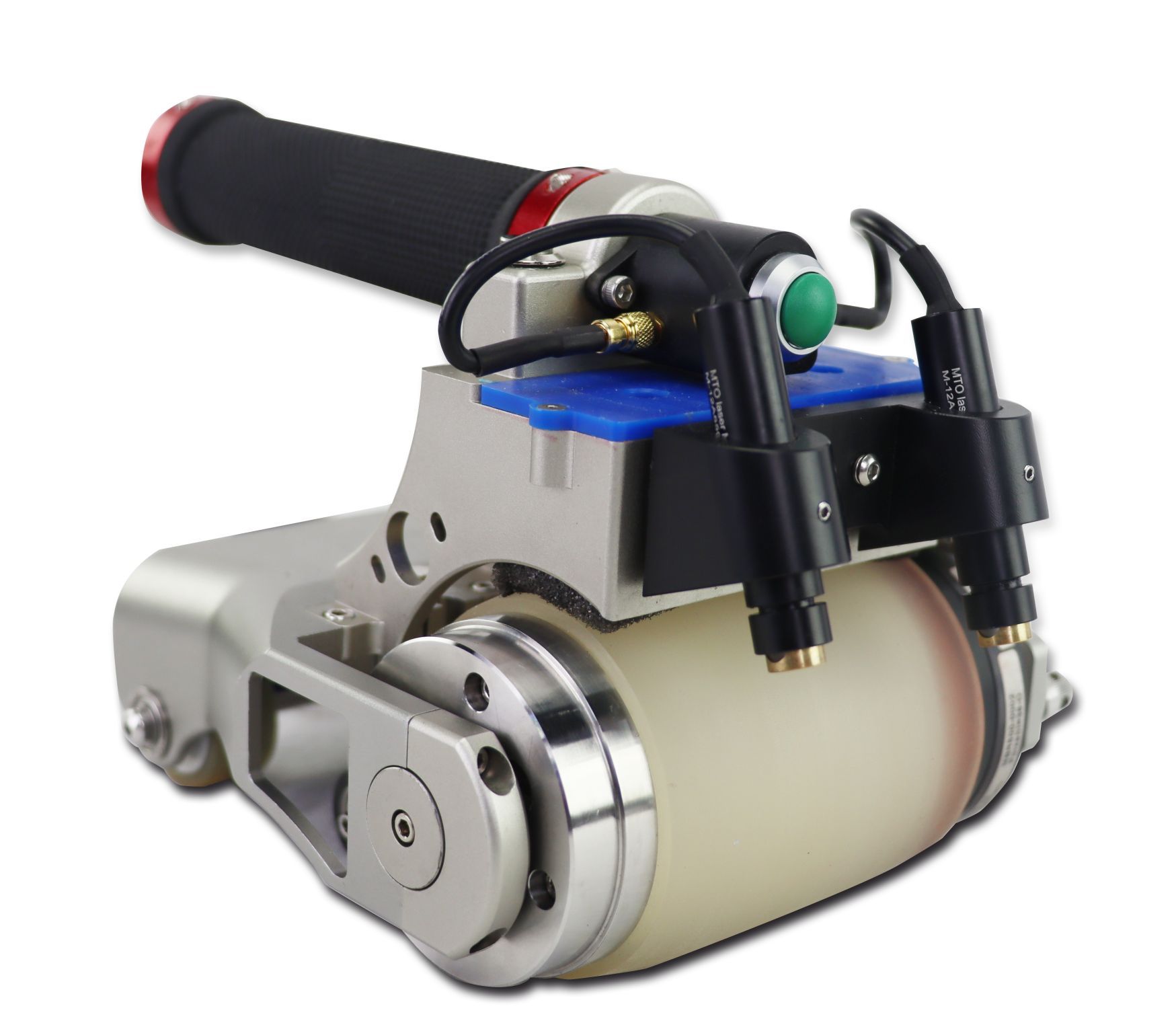

A probe in a wheel with a water coupling system, with an optional 0°–20° angle block.

Choose a model (9)

Select one or more models to ask about all of them at once.

Part number	Application	MHz	Elements	Pitch [mm]	Elevation [mm]	Aperture [mm]	Housing
LS13/LS20-0.5L64-1.5*22	roller	0.5	64	1.5	22	96	LS13/LS20
1L50-2.0*16-B97	wheel	1	50	2	16	100	B97
LS13/LS20-1L64-1.5*22	roller	1	64	1.5	22	96	LS13/LS20
LS06-1L128-1.0*22	roller	1	128	1	22	128	LS06
2L64-1.5*12-B96	wheel	2	64	1.5	12	96	B96
LS06-2.25L128-1.0*22	roller	2.25	128	1	22	128	LS06
5L64-0.8*6.4-B18	wheel	5	64	0.8	6.4	51.2	B18
LS03-5L64/7.5L64-0.8*6.4	roller	5 / 7.5	64	0.8	6.4	51.2	LS03
5L128-0.8*6.4-B60	wheel	5	128	0.8	6.4	102.4	B60

On request

Sales are currently B2B — submit an inquiry and we will prepare a quote and an invoice.

Ask about this product

SKU: PA-WHEEL Categories: Phased array probes, Probes, UT equipment

Description
Additional information

Description

The wheel probe with a water coupling system gives good coupling. The tyre material has very low attenuation. The solution works with automated scanning devices and is suitable for inspecting large flat surfaces or surfaces of slight curvature.

Features

Coupling system with a water reservoir — good acoustic coupling
Tyre material with very low attenuation
Optional angle adjustment block — incidence angle 0°–20°

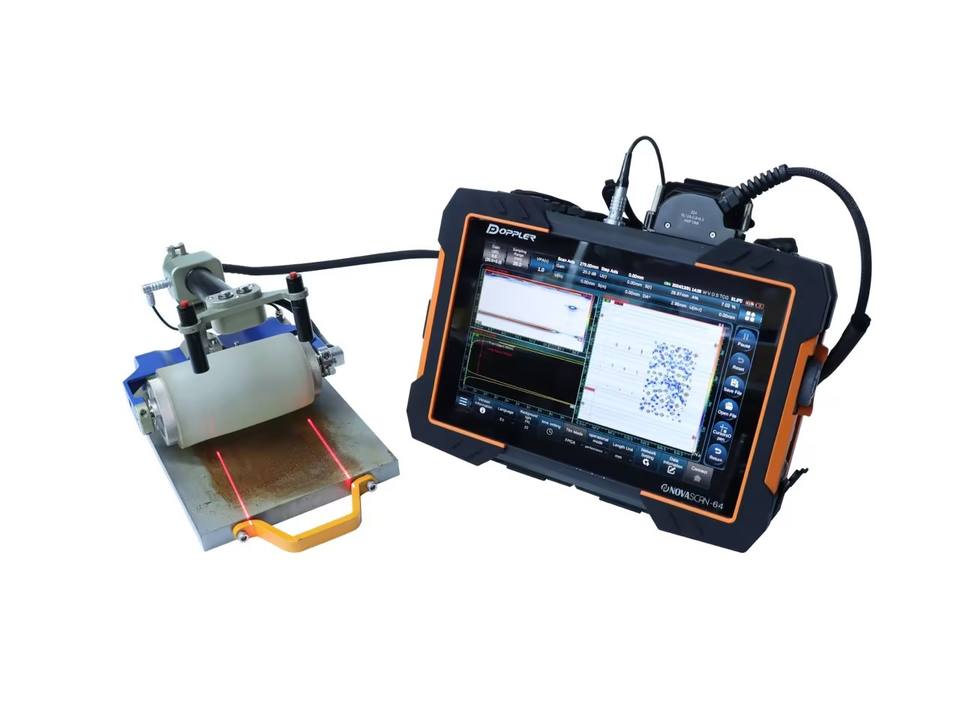

Works with automated scanning devices

Specifications from the manufacturer’s catalogue, Doppler Electronic Technology (2024). X-TEST — exclusive distributor for Poland, Lithuania, Latvia and Estonia.
