Description
Key features

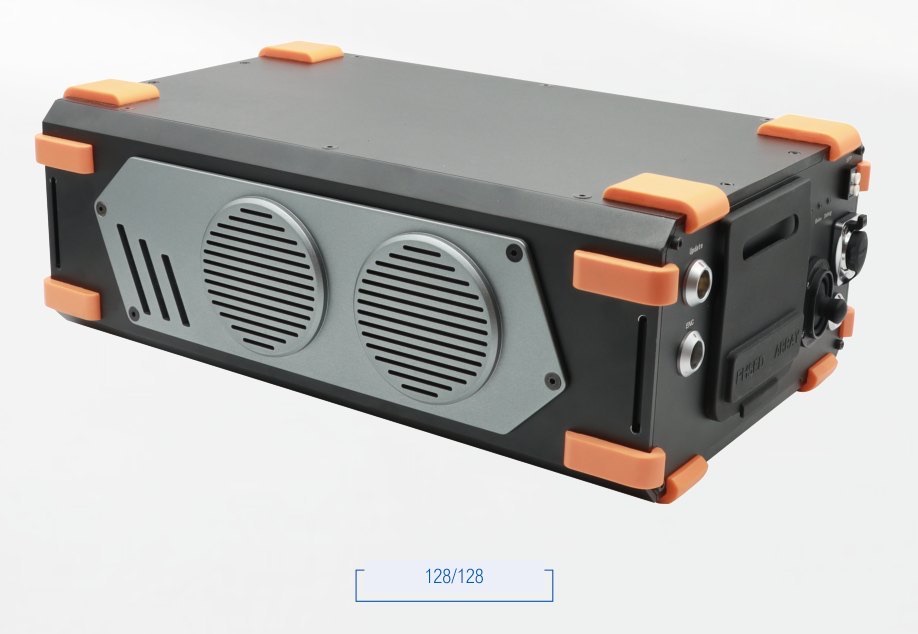

- High-performance matrix probe platform — Fast processing architecture · 64/64 · 128/128 · 256/256 versions · optimised for matrix and MA probes · ideal for nuclear power, aerospace, railways and power generation · suited to thick, highly attenuating and dissimilar-metal welds.
- Parallel scanning and ultra-fast acquisition — Parallel multi-transducer scanning · multi-cycle excitation · PRF up to 40 kHz · multi-channel real-time processing.
- 3D TFM and very high resolution — 3D, FMC-TFM, PWI-TFM, FMC-PCI and PWI-PCI modes · up to 4 million data points · high-resolution imaging for complex structures.
- High-energy pulse and technology integration — Bipolar pulse with high penetration · PA-UT · PA-TOFD combination · suited to different probes and difficult working conditions.
Specifications
| Parameter | Value |
|---|---|
| Configuration | |
| Receive/Transmit | 64/64, 128/128, 256/256 |
| Velocity | 340–15240 m/s |
| Pulser | |
| Test Mode | PE / PC / TT |
| Voltage | 128: 40 V/70 V/100 V/130 V/150 V 256: 40 V/70 V/100 V/130 V/150 V/200 V |
| Pulse Shape | Bipolar Square Wave |
| Pulse Width | 20–1000 ns, 2.5 ns step |
| Rise Time | <10 ns |
| PRF | 40 kHz |
| Delay | 20 µs / 2.5 ns |
| Receiver | |
| Gain | 0–120 dB |
| Bandwidth | 0.4–25 MHz |
| Delay | 20 µs / 2.5 ns |
| Data Acquisition | |
| Sampling Rate | 200 MHz |
| ADC | 16 bit |
| Maximum A-scan | 16384 |
| No. of Focal Laws | 1024 |
| Focus Type | True Depth/Sound Path/Projection/Focal Plane |
| Rectification Mode | FW / HW+ / HW− / RF |
| Parameter | Value |
|---|---|
| Scan/Display | |
| Type | TFM/Linear/Sectorial/Compound scanning |
| Display Mode | A/B/S/D/C/TFM/3D/TopC/Band chart |
| Unit | mm, inch |
| Language | |
| Supported | Chinese/English/French/German/Russian/Italian |
| TCG | |
| Point | 16 |
| Gain Range | 40 dB |
| Band Filter | |
| Band Filter | full-time data averaging |
| Gate | |
| Gate | A/B/C/I + Custom Gate |
| Threshold | 0–100% |
| Gate trigger mode | peak / edge |
| I/O Port | |
| Ethernet | 1000 Mb/s, 10 Gb/s |
| Encoder | dual-axis, LEMO 16-pin |
| Physical specification | |
| Size | 388.53 × 243 × 137 mm |
| Weight | 7 kg |
Specifications reproduced 1:1 from the manufacturer’s catalogue, Doppler Electronic Technology (2026). X-TEST — exclusive distributor for Poland, Lithuania, Latvia and Estonia.
