Description

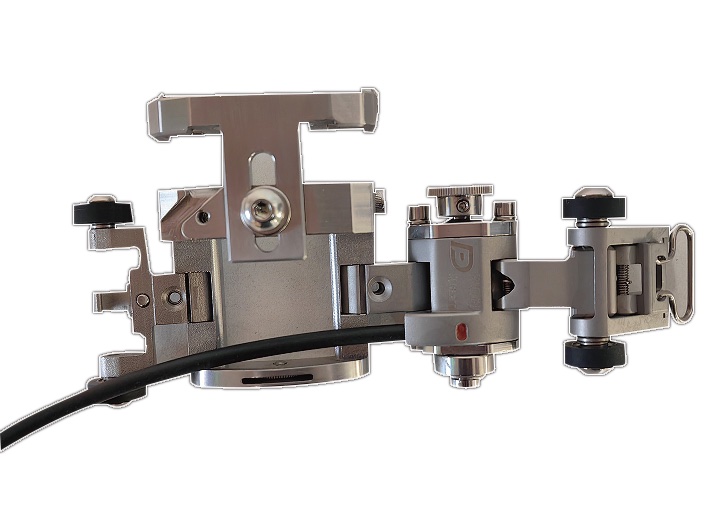

The CRS-34 is designed for weld inspection in particularly confined conditions. The two probes working together require a special way of routing the cables. By design, the minimum distance from the weld to the obstructed area on the opposite side should be 15 mm. The distance from the probe face to the weld centreline is adjustable.
Features
- Work in extremely confined conditions
- Adjustable probe offset from the weld centreline (2.5–7.5 mm)
- Special cable routing for the probes
Specifications
- Minimum pipe diameter: 25 mm
- Minimum passable gap: 25 mm
- Minimum clearance from the obstructed area: 15 mm
Specifications from the manufacturer’s catalogue, Doppler Electronic Technology (2024). X-TEST — exclusive distributor for Poland, Lithuania, Latvia and Estonia.
