Description

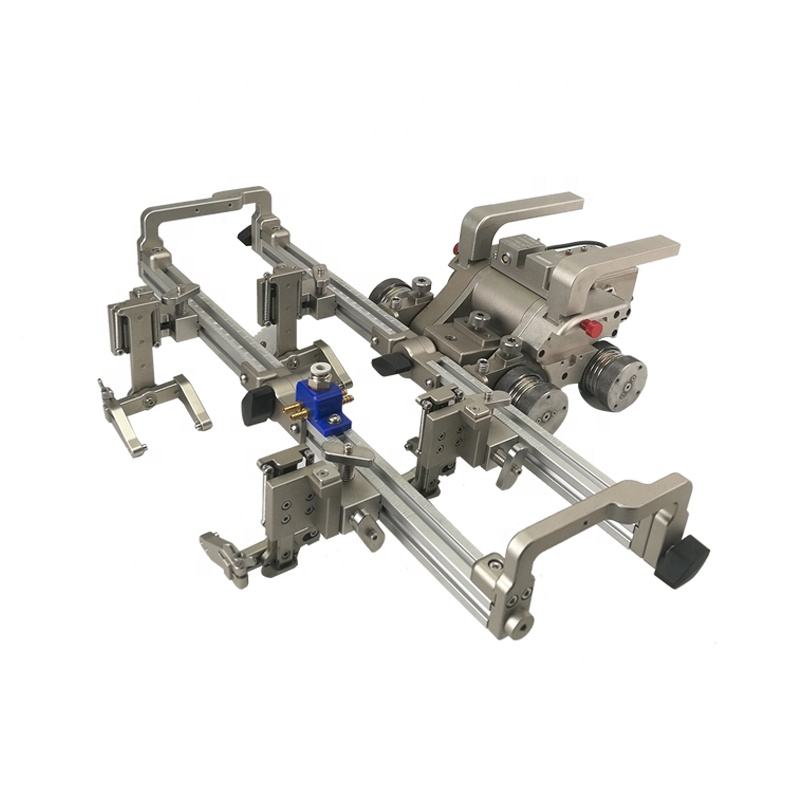

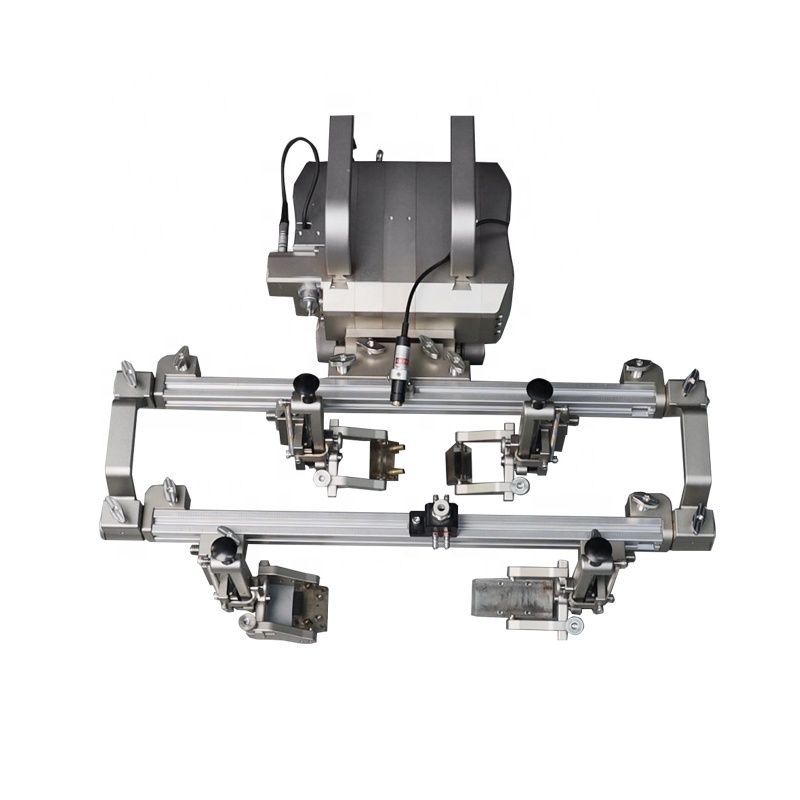

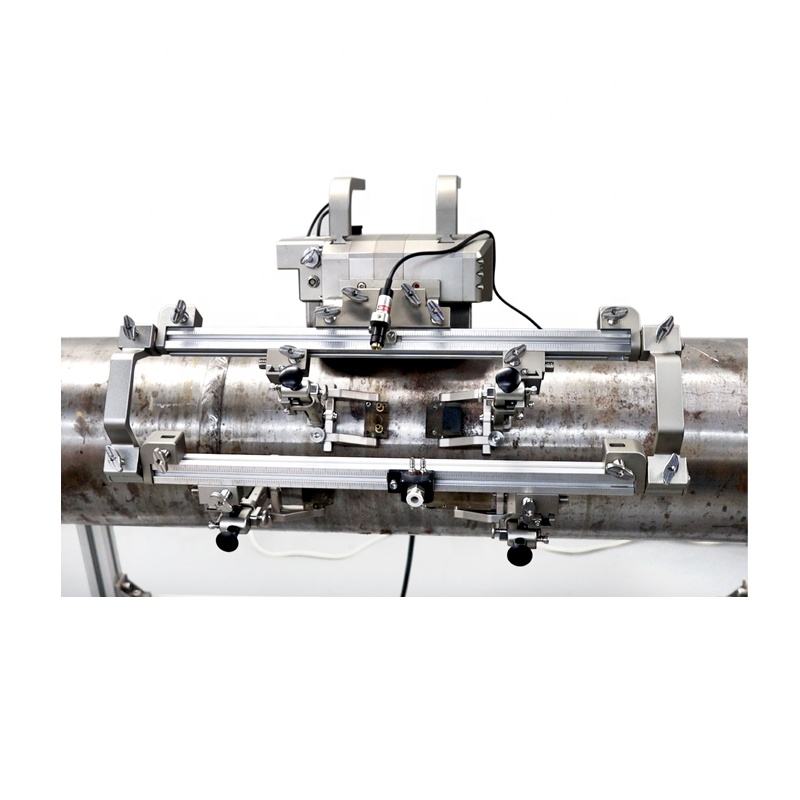

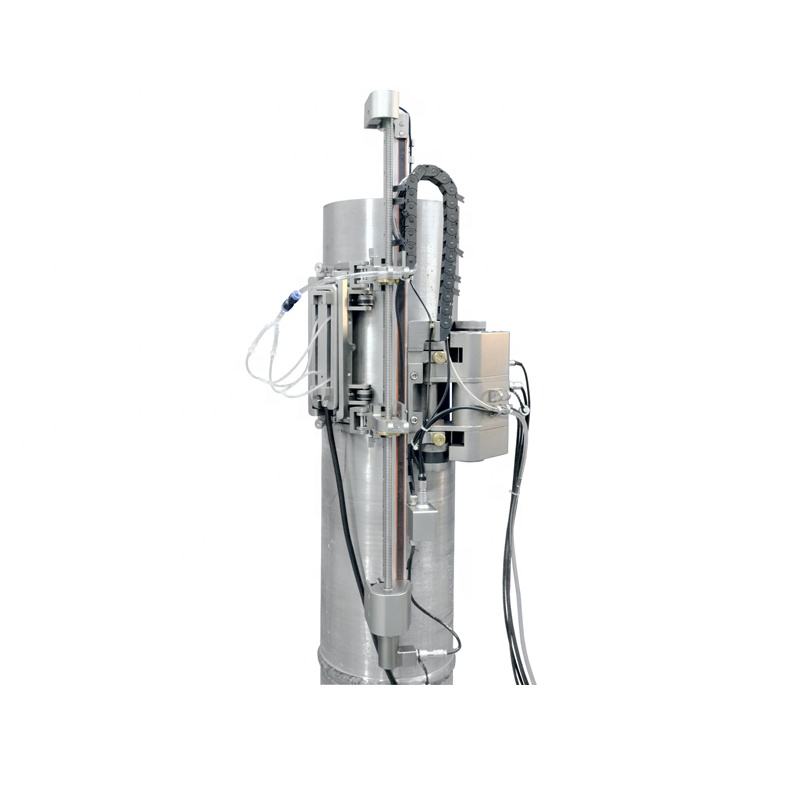

The DSC-08 is a multi-function automatic crawler for pipes above 6″ in diameter and for plate welds. Corrosion and parent material inspection uses 64- or 128-element water column probes, and double-sided inspection of circumferential welds uses 16- or 32-element probes. Travel forward and back and the 500 mm guide screw are controlled remotely.
Key features
- Two jobs in one device — corrosion and parent material, or circumferential welds
- Remote control — travel and guide screw without walking up to the component
- 500 mm guide screw — transverse movement without repositioning the device
- IP65 protection — work in field conditions
Specifications
| Circumferential motion | Φ6″ (152.4 mm) — to flat |
| Axial motion | Φ1500 mm — to flat |
| Encoder step | 28.3 steps/mm |
| Maximum speed | 39 mm/s |
| Minimum speed | 8 mm/s |
| Maximum load on the vertical plane | 6 kg |
| IP level | IP65 |
| Operating temperature | −10°C do +50°C |
| Storage temperature | −20°C do +60°C |
