Description

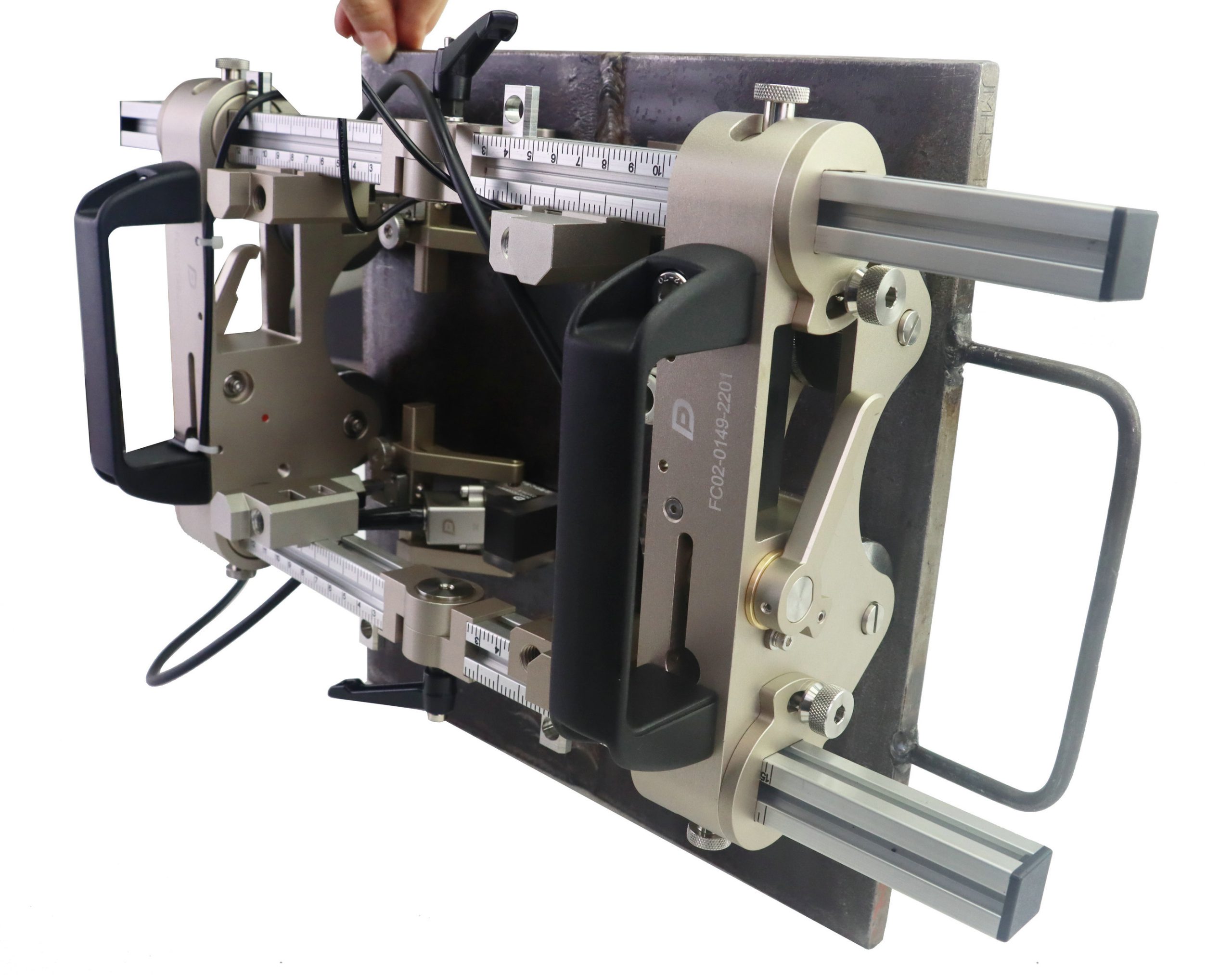

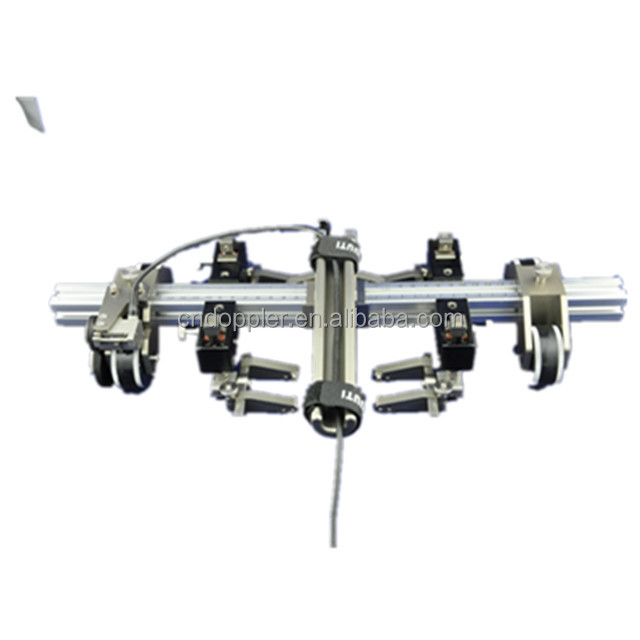

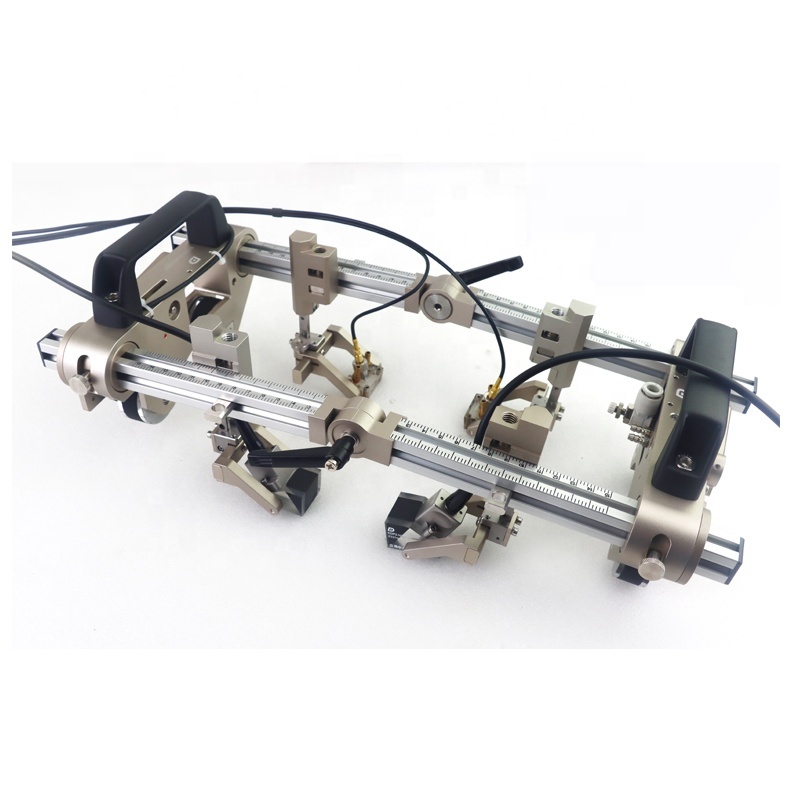

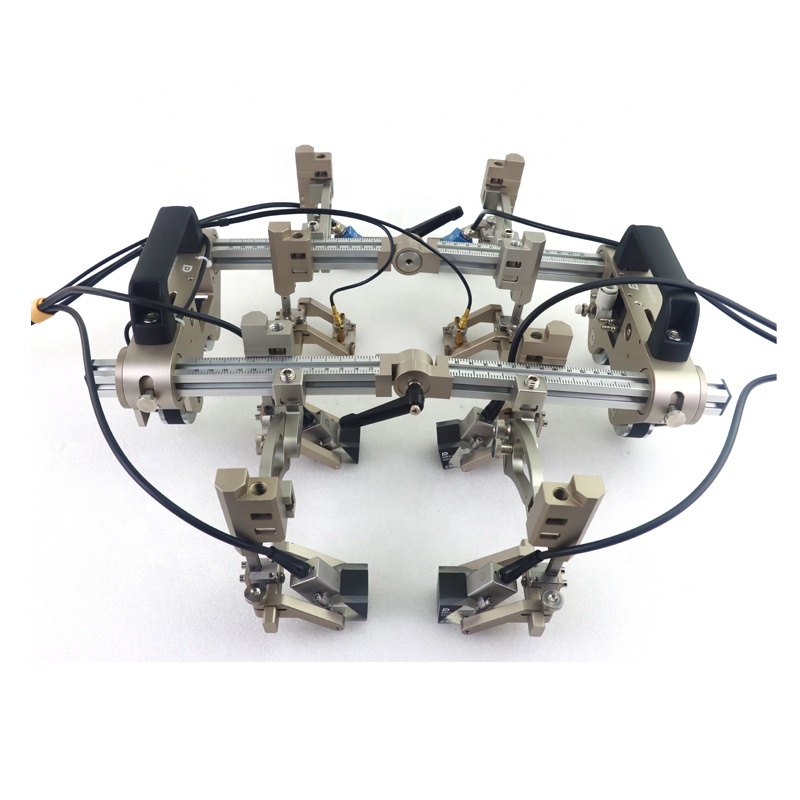

The FC-02 scanner supports curvature adjustment, so it is suitable for inspecting pipes and plates in the circumferential and axial directions. The pressure regulator keeps the wedge tight against the component. A reliable brake lets the scanner be stopped in any position. The FC-02+ version is based on the FC-02 and has an additional 1–4 probe holders, allowing up to 8 phased array or TOFD probes to be mounted — for multi-group inspection.
Features
- Curvature adjustment — pipes and plates, circumferential and axial direction
- Wedge pressure regulator
- Brake holding the scanner in any position
- FC-02: 4 PA/UT probes; FC-02+: up to 8 probes
- Quick mounting and removal of probes
Specifications
- Circumferential range: Φ6″ (150 mm) to flat
- Axial range: Φ17″ (425 mm) to flat
- FC-02 dimensions: 446 × 182 × 128 mm
- FC-02+ dimensions: 446 × 476 × 139 mm
- Encoder step: 48 steps/mm
- IP level: IP65 (FC-02) / IP67 (FC-02+)
- Operating temperature: −10°C do 50°C
- Wedge width: 32–48 mm
Specifications from the manufacturer’s catalogue, Doppler Electronic Technology (2024). X-TEST — exclusive distributor for Poland, Lithuania, Latvia and Estonia.
