Description
Probes designed to be fully or partly immersed in water or another liquid in order to generate the ultrasonic beam. Available in the European (I1) and North American (I3) standards.
Features
- European standard I1 — top mounting, 1.8 m or 2.5 m cable with Lemo 01 (C9) connector
- North America standard I3 — 9.7 mm outer diameter, for limited detection environments
- Top-mounted Microdot (L5), non-waterproof (I3)
- Three performance types: PL, PH, C
Specifications
- Frequencies: 1–25 MHz (I1: 1/2/4/5/10/15/20 MHz; I3: 2.25/3.5/5/10/15/20/25 MHz)
- Nominal element sizes: 3 / 5 / 6 / 10 / 20 mm

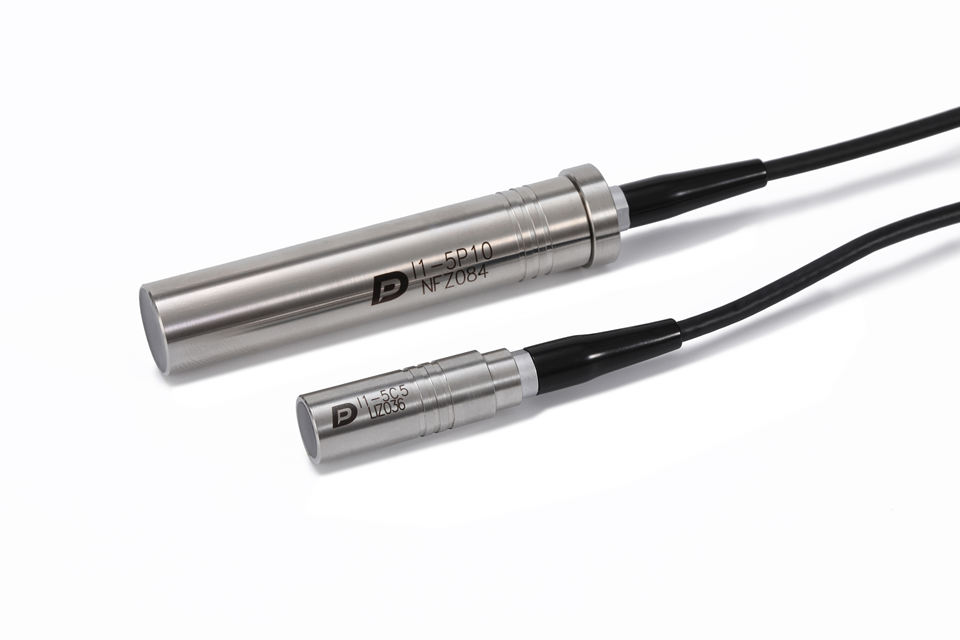

- Example model: I1-5P10
Specifications from the manufacturer’s catalogue, Doppler Electronic Technology (2024). X-TEST — exclusive distributor for Poland, Lithuania, Latvia and Estonia.
