Description

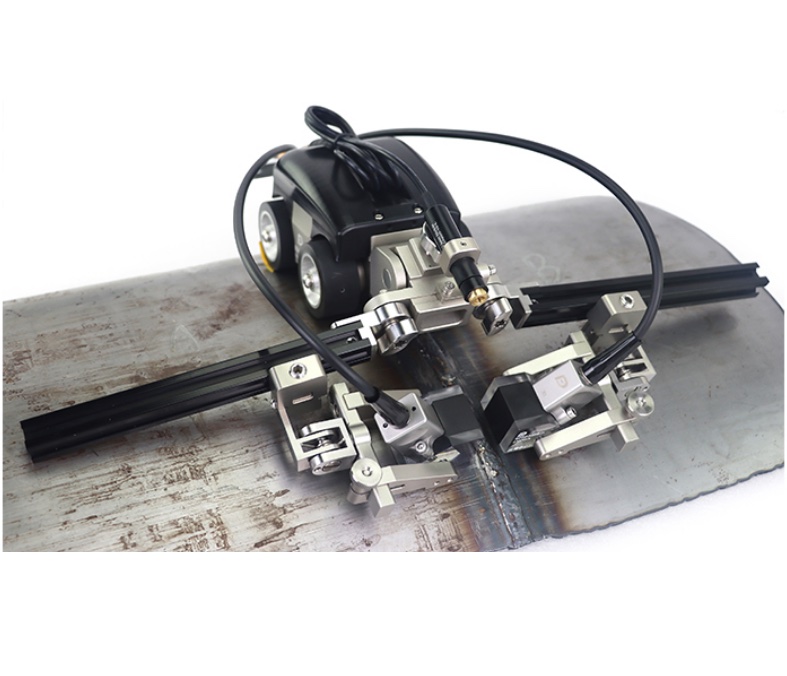

The MOS-40 is a dual-probe mouse-type scanner intended primarily for inspecting spiral welded pipe welds. It allows encoded inspection with two PAUT probes or TOFD inspection of axial and circumferential welds, as well as flat butt welds. The angle of each probe is adjustable and the wheels adjust to the pipe size.
Features
- Adjustable angle for each probe
- Wheels adjustable to the pipe diameter
- Compact and handy design
Specifications
- Axial / circumferential: OD ≥ Φ200 mm
- Spiral welded: OD ≥ Φ500 mm
- Size: 282 × 243 × 82 mm
- Encoder step: 32 steps/mm
- IP level: IP64
- Operating temperature: −10°C do 50°C
Specifications from the manufacturer’s catalogue, Doppler Electronic Technology (2024). X-TEST — exclusive distributor for Poland, Lithuania, Latvia and Estonia.
