Phased array probes — flexible array series

Name: Phased array probes — flexible array series
Brand: Doppler
SKU: PA-FLEXIBLE

Probes that bend to the shape of the surface, minimum bending radius 30 mm, thickness from 3 mm.

Choose a model (6)

Select one or more models to ask about all of them at once.

Part number	Application	MHz	Elements	Pitch [mm]	Elevation [mm]	Aperture [mm]	Housing
5S24-1.0*10-S1	flexible	5	24	1	10	24	S1
5S32-0.5*10-S1	flexible	5	32	0.5	10	16	S1
5S64-1.0*10-S2	flexible	5	64	1	10	64	S2
7.5S32-0.5*10-S1	flexible	7.5	32	0.5	10	16	S1
7.5S32-1.0*10-S1	flexible	7.5	32	1	10	32	S1
7.5S64-0.5*10-S1	flexible	7.5	64	0.5	10	32	S1

Selected model: 5S24-1.0*10-S1-U-110-2.0

On request

Sales are currently B2B — submit an inquiry and we will prepare a quote and an invoice.

Ask about 5S24-1.0*10-S1

SKU: PA-FLEXIBLE Categories: Phased array probes, Probes, UT equipment

Description
Additional information

Description

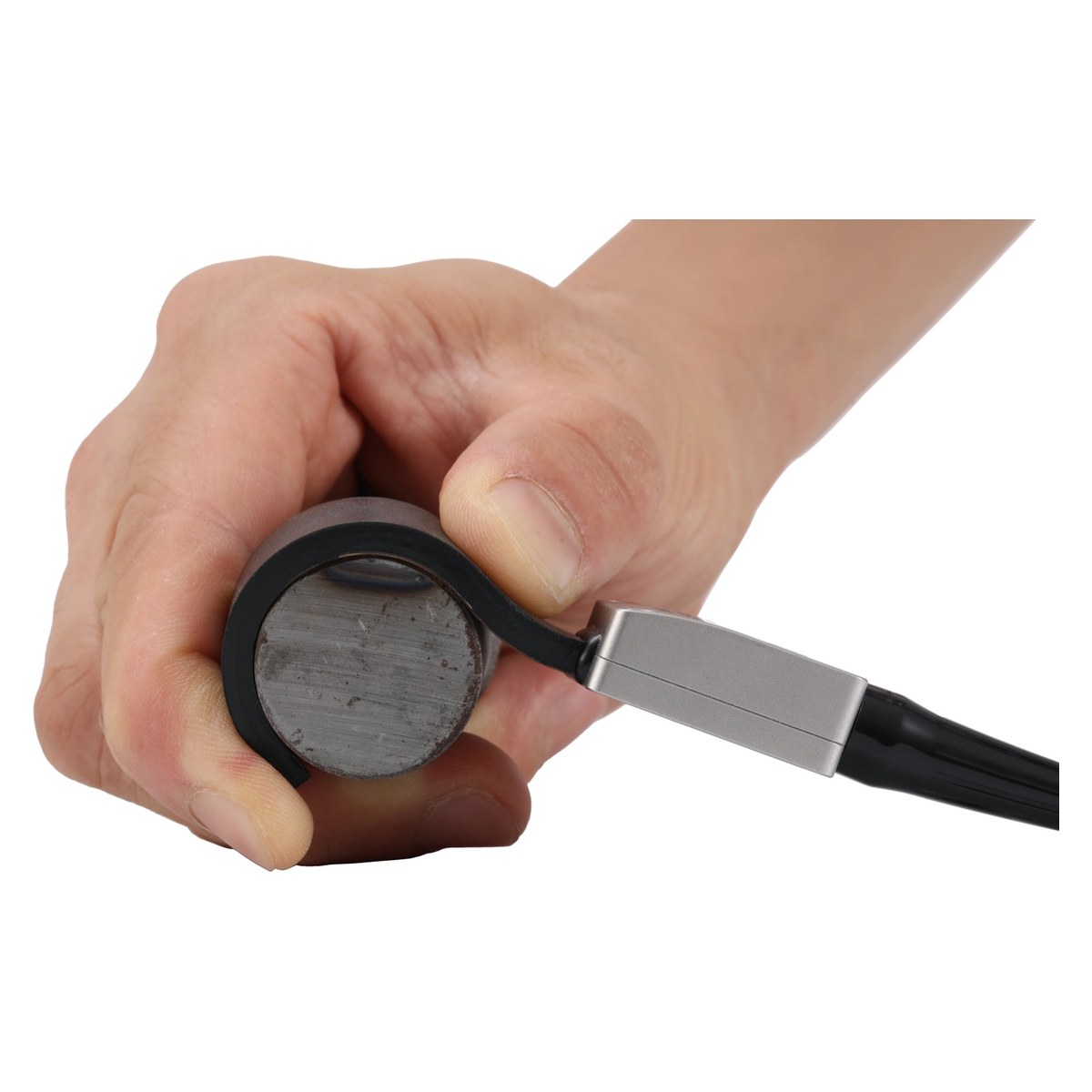

The primary axis of the probe can bend to follow the shape of the component surface. The curvature is variable, with a minimum bending radius of 30 mm. At a minimum thickness of 3 mm the probe reaches into narrow spaces. Combined with Doppler scanners it is suitable for corrosion and thickness measurement of pipes and bars.

Features

Variable curvature, minimum bending radius 30 mm
Minimum thickness 3 mm — access to narrow spaces
Works with Doppler scanners for corrosion and thickness measurement

Specifications

Available models: 7.5S64-0.5×10 (DP26 housing), 7.5S64-1.0×10 (DP27 housing)
Frequency: 7.5 MHz
Number of elements: 64
Pitch: 0.5 or 1.0 mm
Active Aperture: 32 or 64 mm
Housing dimensions: 80 × 19 × 4 mm (DP26), 150 × 29 × 4 mm (DP27)

Specifications from the manufacturer’s catalogue, Doppler Electronic Technology (2024). X-TEST — exclusive distributor for Poland, Lithuania, Latvia and Estonia.
