Description
The manufacturer has over a decade of experience in designing and building custom ultrasonic probes — from single units to high-volume production. The receiver series is used to receive and condition signals in photoacoustic and thermoacoustic imaging. The power series is intended for high-power ultrasound.
Features
- Receiver series: optimised receiving bandwidth and electromagnetic shielding
- Power probe single element series: 0.5–10 MHz, aperture 1–120 mm, focusing number F > 0.5
- Sound intensity in the focal area > 5000 W/cm²
- High efficiency, low heating, continuous wave excitation
- Customised mechanical structure, MRI-compatible versions

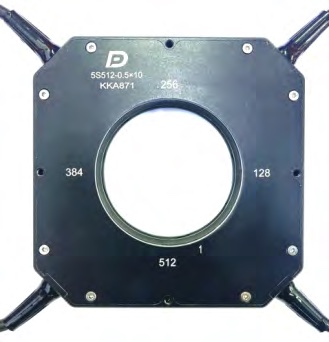

- Power array series: 0.5–3 MHz, linear, circular, matrix and multi-channel arrays
Specifications
- Model designation: TP = metal housing, TPM = plastic housing (MRI-compatible)
Specifications from the manufacturer’s catalogue, Doppler Electronic Technology (2024). X-TEST — exclusive distributor for Poland, Lithuania, Latvia and Estonia.
