Description

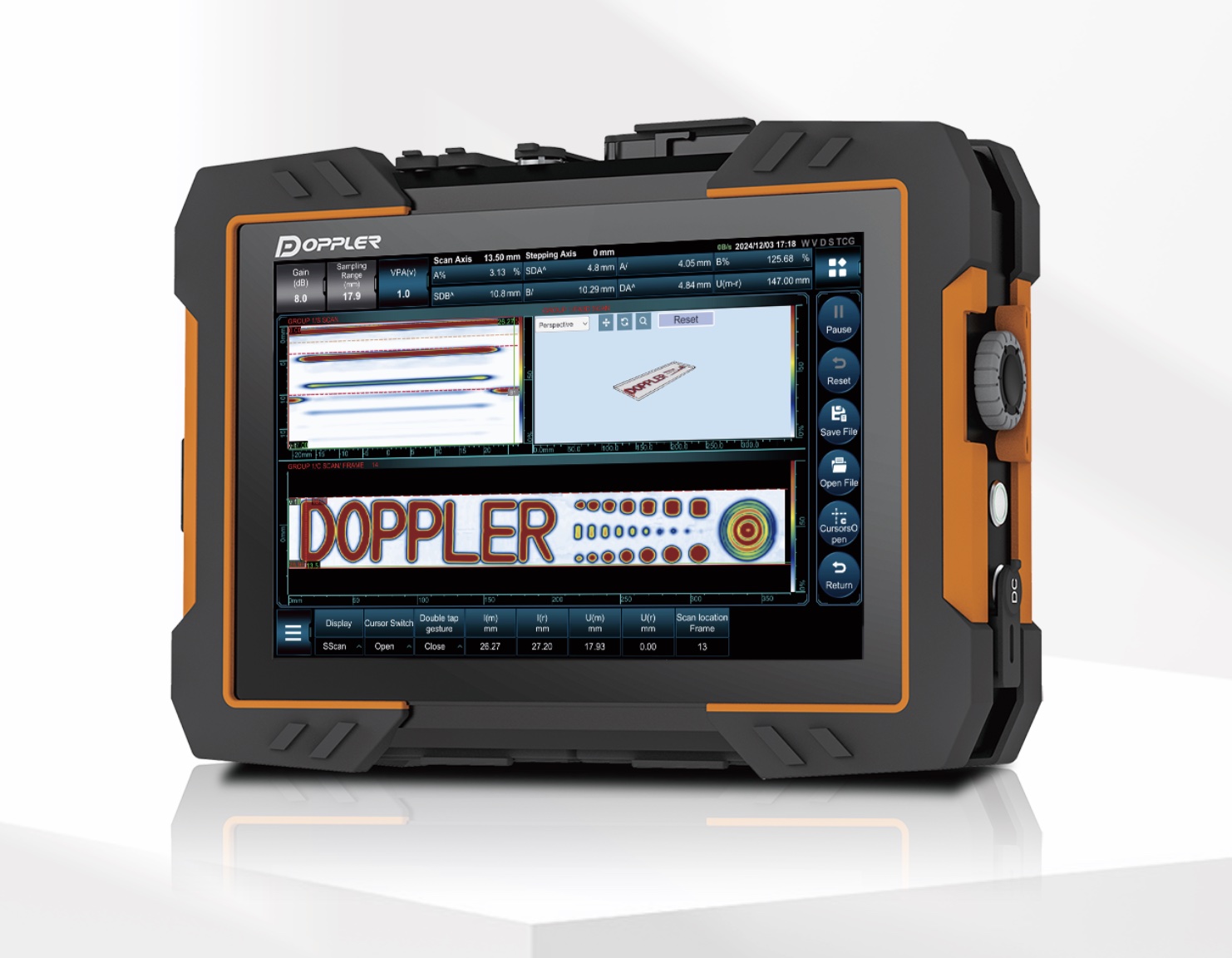

The Novascan V2 is a phased array ultrasonic flaw detector combining FMC/TFM, PWI/TFM, PAUT, conventional UT and TOFD on one platform. Up to 128 channels, a 40 kHz repetition frequency and real-time processing allow fast acquisition while keeping high accuracy. Matrix 3D TFM imaging is complemented by intelligent flaw recognition and a fast data engine with large storage capacity.
Key features
- Higher performance and simpler operation — higher pulse voltage, wider bandwidth and faster sampling; interface optimised for efficient work
- High-Speed Acquisition — 128 channels, 40 kHz PRF, real-time processing, high precision
- Multi-technique inspection — FMC/TFM · PWI/TFM · PAUT · UT · TOFD on one platform
- 3D imaging and intelligent analysis — matrix 3D TFM, intelligent flaw recognition, large storage capacity, fast data engine
Specifications
| Parameter | Phased array module | Conventional UT |
|---|---|---|
| Configuration | ||
| Receive / transmit channels | 64/128PR, 64/64PR, 32/128PR, 32/64PR | 2 / 2 |
| Velocity | 340–15240 m/s | 340–15240 m/s |
| Pulser | ||
| Working mode | PE / PC / TT | PE / PC / TT / TOFD |
| Voltage | 20 V–120 V / 10 V | 100 V / 200 V / 400 V |
| Pulse Shape | Bipolar Square Wave | Negative Square Wave |
| Pulse Width | 20–1250 ns / 2.5 ns | 25–1000 ns / 2.5 ns |
| Rise Time | < 10 ns | < 10 ns |
| PRF | 40 kHz | 24 kHz (12 kHz per channel) |
| Delay | 20 μs / 2.5 ns | 20 μs / 2.5 ns |
| Receiver | ||
| Gain | 0–120 dB | 0–120 dB |
| Bandwidth | 0.3–25 MHz | 0.3–25 MHz |
| Delay | 20 μs / 2.5 ns | 20 μs / 2.5 ns |
| Data Acquisition | ||
| Sampling Rate | 200 MHz | 200 MHz |
| ADC | 16 bit | 16 bit |
| Focus Type | true depth / sound path / projection / focal plane / dynamic focusing | NA |
| Rectification Mode | FW / HW+ / HW− / RF | FW / HW+ / HW− / RF |
| Maximum A-scan length | 16384 | 16384 |
| Scan/Display | ||
| Type | TFM/Linear/Sectorial/Compound scanning | NA |
| Display mode | A/B/S/D/C/FMC-TFM/PWI-TFM/3D/TopC/Band chart | A/B/C/Band chart |
| Unit | mm/inch | mm/inch |
| TCG | ||
| Point | 16 | 16 |
| Gain Range | −18 do 40 dB | −18 do 40 dB |
| Max. inclination | 40 dB / 10 ns | 40 dB / μs |
| Gate | ||
| Gate | A / B / C / I + custom gate | |
| Threshold | 0–100% | |
| TFM | ||
| Point | 1024 × 1024 | |
| Data Storage | ||
| ROM | 128 GB EMMC + SSD (max. 1 TB) | |
| Report | ||
| Formats | WORD, PDF, EXCEL | |
| Display Screen | ||
| Size | 12.1 inch | |
| Resolution | 1280 × 800 px | |
| Type | Industrial TFT LCD Touch Screen | |
| I/O ports | ||
| USB | 2 × USB 3.0 + 1 × USB 2.0 | |
| Ethernet | 1; 1000 Mb/s | |
| Video Output | HDMI | |
| Encoder | LEMO 16-pin | |
| Multifunctional Interface | LEMO 14-pin | |
| Language | ||
| Supported | Chinese/English/Russian/French/German/Italian | |
| Power Supply | ||
| DC Supply Voltage | 15 V DC | |
| Battery Type | lithium 10.8 V / 97.2 Wh (hot swap supported) | |
| Continuous Working Time | about 5 hours | |
| Case | ||
| Size | 367 × 259 × 129 mm | |
| Weight | 4.9 kg (without battery) · 5.4 kg (with one) · 5.9 kg (with two) | |
| IP level | IP65 | |
Specifications reproduced 1:1 from the manufacturer’s catalogue, Doppler Electronic Technology (2026, EN edition). X-TEST — exclusive distributor for Poland, Lithuania, Latvia and Estonia.
