Description

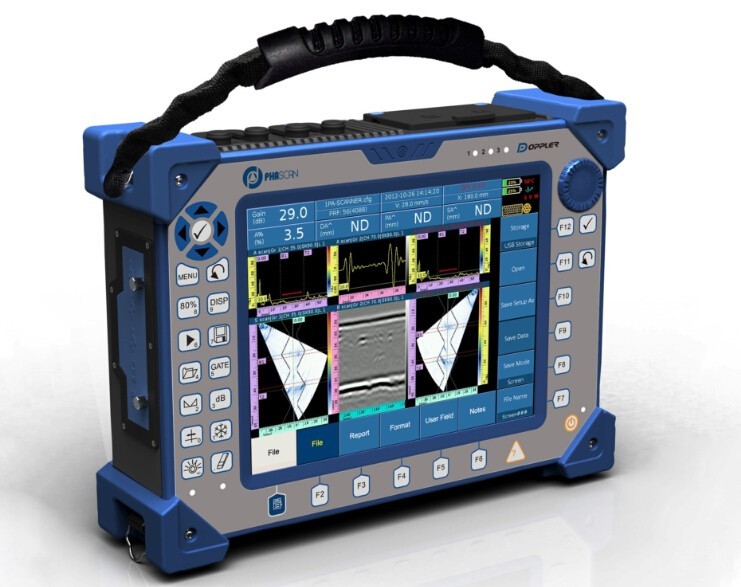

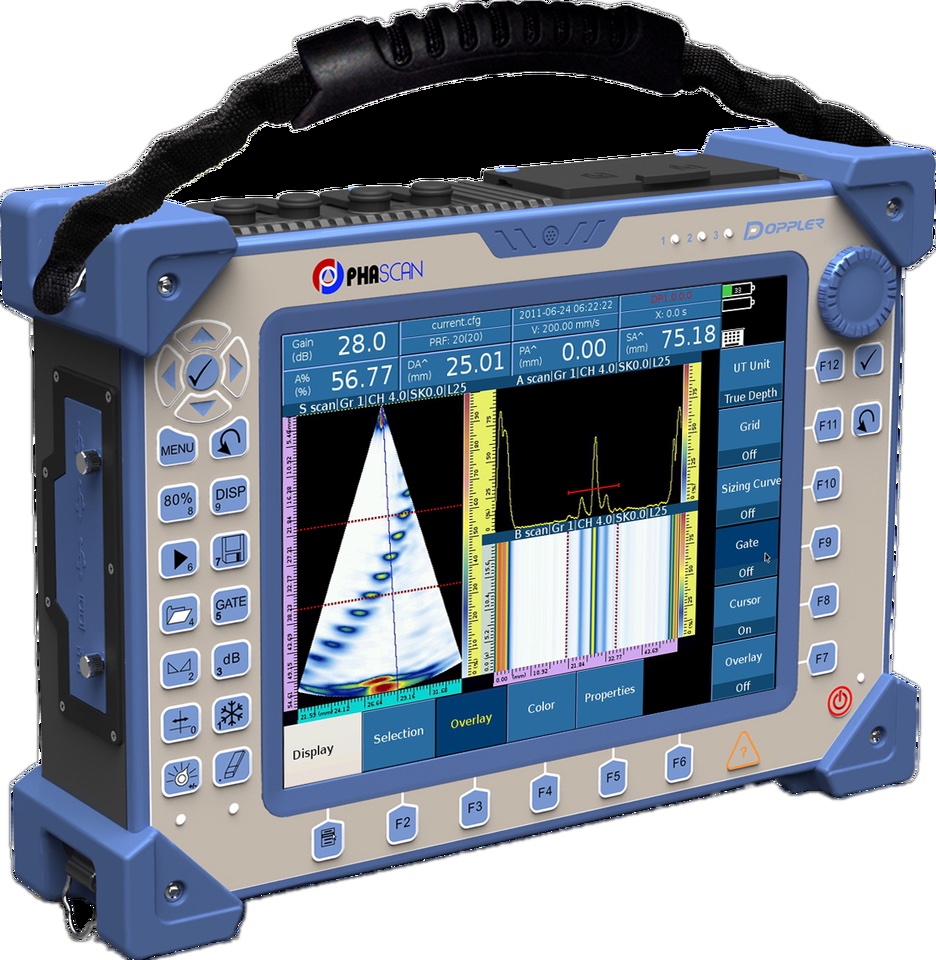

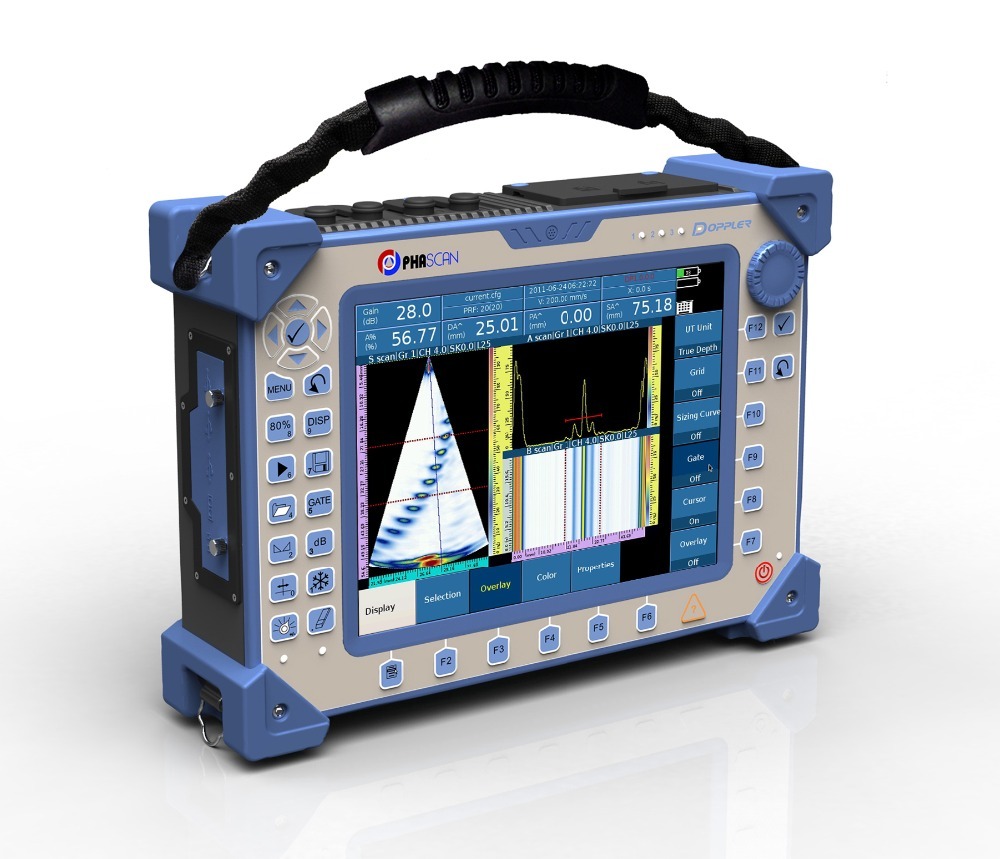

The Phascan is a portable phased array flaw detector with a built-in focal law calculator and two independent channels for efficient TOFD inspection. It supports parallel scanning with several groups, which is equivalent to running several instruments at once.
Features
- Transmit/receive channels: 16/64, 32/64, 32/128 and 32/128PR
- Two independent channels for efficient TOFD inspection
- Built-in focal law calculator
- Four scanning modes: linear, sectorial, depth and static
- Four focusing types: true depth, sound path, projection and focal plane
- A / B / S / C / TOFD display modes
- Separate calibration for each beam
- Parallel scanning with multiple groups
- Model import from AutoCAD
Specifications
- Pulse: negative square wave, resolution down to 2.5 ns
- PRF: do 20 kHz
- Display Screen: 10.4″ TFT LCD touchscreen, 800×600 px
Specifications from the manufacturer’s catalogue, Doppler Electronic Technology (2024). X-TEST — exclusive distributor for Poland, Lithuania, Latvia and Estonia.
