Ultrasonic testing equipment

The complete Doppler ultrasonic testing chain — from flaw detectors through probes and wedges to scanners and automated systems.

Doppler Electronic Technology Exclusive distributor of the DOPPLER brand
PL · LT · LV · EE
B2B salesOrders are handled on request — pick a product and submit an inquiry, and we will prepare a quote and an invoice.

Application

Weld inspection51 Corrosion and wall loss26 Base material19 Thickness measurement12 Composites and bonded joints11 Bolt inspection6 High temperature inspection4

Inspected object

Pipes and pipelines41 Plates and panels12 Railway components7 Tanks6 Forgings and castings4 Nozzles and connections4 Elbows and bends3 PE pipes3 Wind power3

Working conditions

Magnetic surfaces15 Immersion8 Confined spaces6 Remote control5 High temperature4

Diameter range

Above Ø600 mm and flat12 Ø200–1220 mm10 Ø100–400 mm9 Ø50–300 mm7 up to Ø115 mm6

Inspection technique

Conventional UT26 Phased array (PA)24 TFM / PWI7 TOFD7 Air-coupled (ACU)1

Mounting

Motorised14 Chain13 Magnetic13 Frame10 Water coupled8 Mouse-type6 Suction cup3

IP rating

IP6510 IP679 IP662 IP641
Clear filters

Showing all 10 results

Where Doppler ultrasonic equipment works

Ultrasonic testing moved past butt welds a long time ago. The same instrument, with a different probe and scanner, checks corrosion in a tank, the bonding of battery cells and honeycomb structure in an aircraft skin. Below are the applications this equipment is built for, together with the configuration we would match to each.

Industry What is inspected With what
Power generation small diameter boiler tube welds, water wall corrosion, turbine blade roots, flange bolts CRS-7 / CRS-8, CRS-14 / CRS-15, Phased array probes (PAUT)
Oil, gas, chemicals girth and spiral pipeline welds, corrosion of tanks and pipelines, PE pipe joints MOS04, MOS40, DSC03, PE pipe scanners

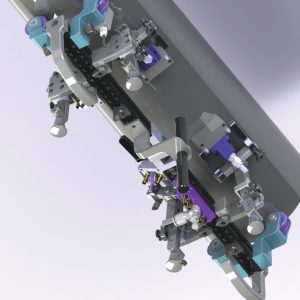

Steel structures butt welds in plate, TKY tubular nodes, fillet welds, bridge ribs MOS01, MOS02, FC-01
Rail friction stir welds in car bodies, axles, bogie components Automated ultrasonic systems, Phased array probes (PAUT)
Aerospace and composites honeycomb structures, carbon and carbon-glass (fibre-glass) composites, CFRP laminates, R-corners, riveted joints Phased array probes, Phased array probes
Automotive and batteries electron beam welds in gearboxes, cell and cooler bonding, spot welds Automated ultrasonic systems, Phased array probes, spot welding probes
Wind power blade root bolts, pitch bearings, blade laminate FS01, Special ultrasonic probes
Foundries and mills castings, forgings, explosion-clad materials, additively manufactured parts Immersion probes, Automated ultrasonic systems

A few numbers from these applications

  • A 12 m spiral pipe weld — inspected in about 3 minutes on an automated station
  • A boiler tube girth weld — full volumetric inspection in about 20 seconds once the instrument is set up
  • Modular scanners that fit clearances from around a dozen millimetres, meaning between tubes in a boiler bank
  • Flexible probes working on surfaces with a bending radius from 30 mm and thicknesses from 3 mm
  • PE butt fusion joints of 220–710 mm diameter and 14–45 mm wall — techniques developed and qualified on specimens with artificial defects

Why buy this equipment from a laboratory

We sell the equipment we work with ourselves as a PCA-accredited laboratory. Before anything enters the catalogue it passes through our hands on real inspections. That is why a conversation here starts from the product, the material and the acceptance standard, and ends with a configuration: instrument, probe, wedge, scanner and reference block.

We also help put the inspection to work at your site: writing the procedure, setting evaluation levels and training the personnel. The instrument is one third of the inspection — the rest is the procedure and people certified to PN-EN ISO 9712.

Frequently asked questions

Where do I start when choosing equipment?

With three things: what you inspect (material, thickness, geometry), the standard the result is accepted against, and whether the inspection has to be recorded. Those answers decide between conventional Ultrasonic flaw detectors and phased array, and whether you need an encoded scanner.

Do you supply complete sets or single items?

Both. Usually we put together a set: instrument, Ultrasonic probes, Wedges and delay lines, Manual and modular scanners for UT and calibration blocks, because the weakest link sets the reliability of the inspection. Single probes, cables or wedges for equipment you already own are shipped too.

Is the equipment suitable for accredited testing?

Yes, provided the inspection follows a procedure written to the relevant standard, on calibrated equipment and by personnel with a valid certificate. The equipment alone does not carry accreditation — we help put the whole thing together.
